Part Number: RGR2HP-CC-V-WH / Vendor ID Number: 776 / Custom:

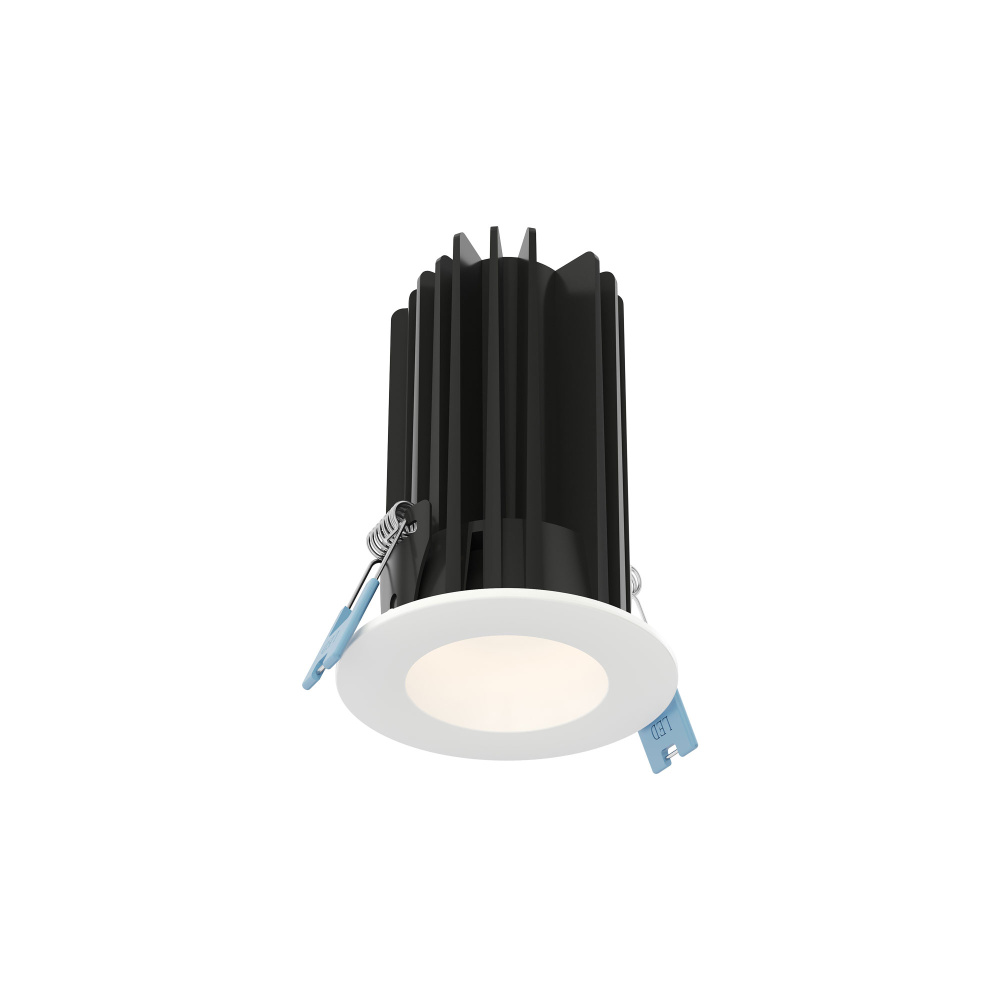

Round regressed recessed light - High Power - universal 120V-347V, 0-10V dimming

Round regressed recessed light - High Power - universal 120V-347V, 0-10V dimming

107

Pack Of: 1

888 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

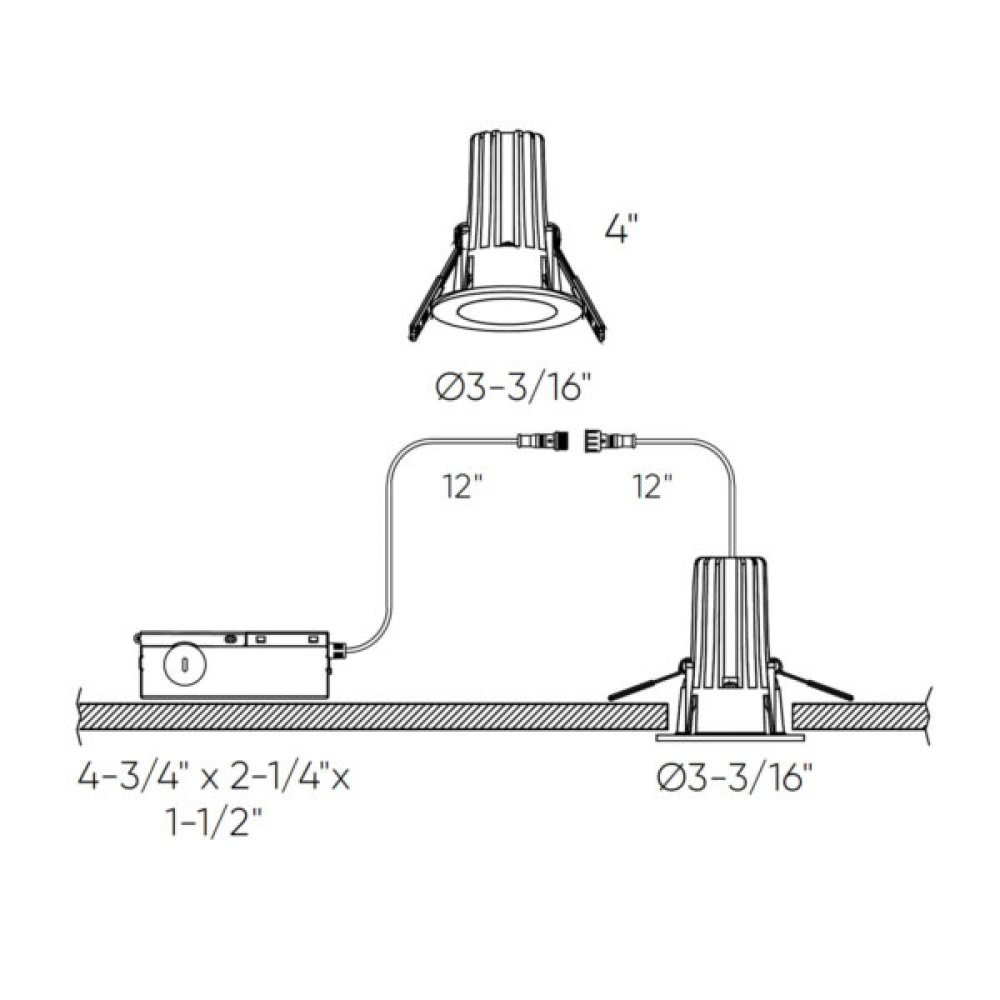

Dimensions

Height: 3.93"

Width: 3.19"

Length: 3.19"

Product Overview

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

Product Availability

Item appears to be in stock and ready to ship

Additional Information

40° beam angle

Air-tight certified as per ASTM E283-04

IC certification (suitable for direct contact with insulation)

Suitable for wet locations

Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Technical Details

Details

Finish:

White /vendors/vendorImages white.jpg

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

Prop 65 /vendors/vendorImages prop65.png

Category:

Recessed

Subcategory:

Directional

Finish:

White

Option:

Outdoor

Prop 65

Title 24

Family:

RGR

Voltage:

120 V/ 277 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.1

Ship Carton Length:

5.75

Ship Carton Width:

5.75

Ship Weight:

1.25

Warranty:

5 Years Limited

Weight:

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

1080

Dimmer Type:

Triac / ELV

Energy Star:

IC Certification:

Yes

Indoor:

Yes

IP Rating:

IP44

Lens Material:

Acrylic

Location Rating:

Wet Rated

Max Wattage:

15 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

View

Safety Rating:

ETL Approved

Shipping Master Height:

18.75

Shipping Master Length:

12.25

Shipping Master Quantity:

Shipping Master Width:

12.25

Title 24:

Yes

Wiring:

Hardwired
