Part Number: RGR4-CC-V-WH / Vendor ID Number: 776 / Custom:

Round regressed recessed light 120-277V

129

Pack Of: 1

206 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

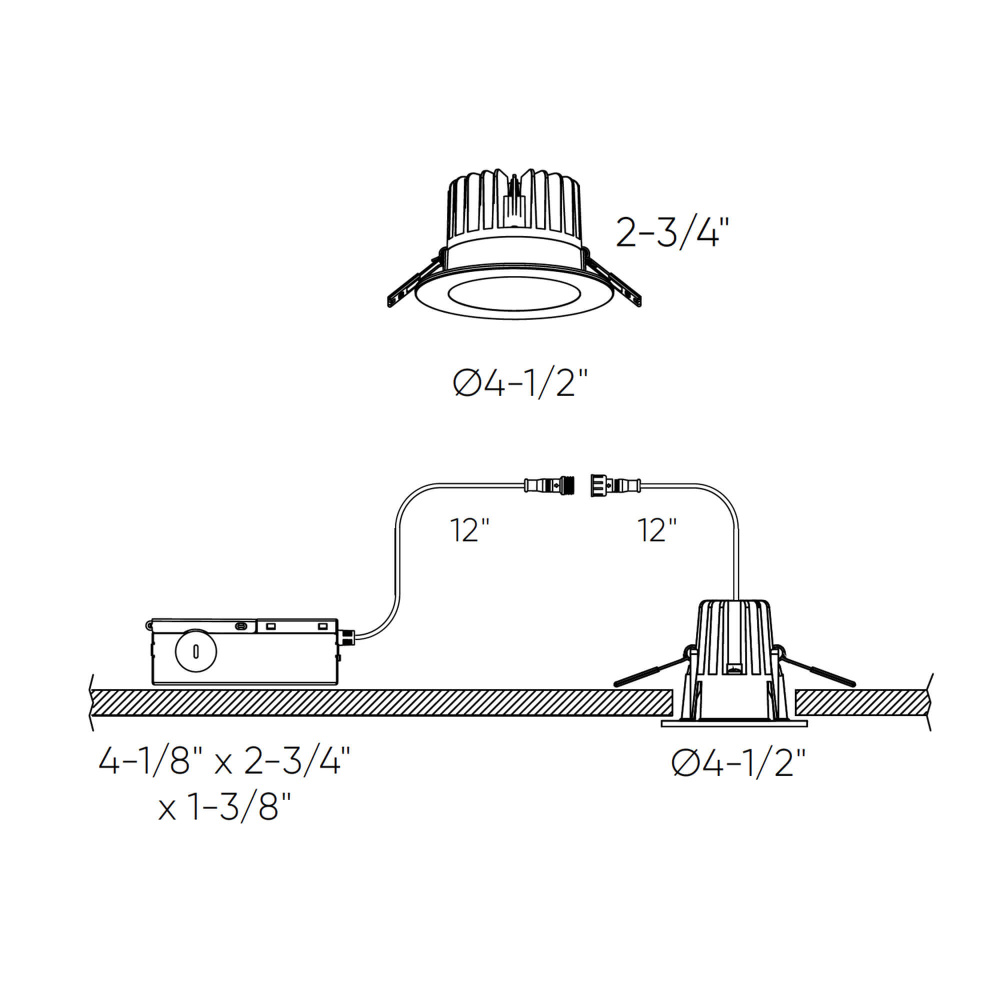

Dimensions

Height: 2.75"

Length: 4.50"

Product Overview

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

Product Availability

Item appears to be in stock and ready to ship

Additional Information

40° beam angle

Air-tight certified as per ASTM E283-04

IC certification (suitable for direct contact with insulation)

Suitable for wet locations

Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White /vendors/vendorImages white.jpg

Option:

Energy Star /vendors/vendorImages energy star.jpg

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

Prop 65 /vendors/vendorImages prop65.png

Location Rating:

Wet Rated

Category:

Recessed

Subcategory:

Regressed

Finish:

White

Option:

Energy Star

Outdoor

Prop 65

Title 24

Family:

RGR

Voltage:

120 V/ 277 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

12.2/2.54

Ship Carton Length:

6.75

Ship Carton Width:

6.1

Ship Weight:

1.54

Warranty:

5 Years Limited

Weight:

1.1

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

1100

Dimmer Type:

0-10V Dimming

Energy Star:

Yes

IC Certification:

Yes

Indoor:

Yes

Lens Material:

Plastic

Location Rating:

Wet Rated

Max Wattage:

14 W / 15 W

Maximum Working Temperature:

50°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

View

Safety Rating:

ETL Approved

Shipping Master Height:

10.5

Shipping Master Length:

18.5

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

16.5

Title 24:

Yes

Wiring:

Hardwired
