Item Sales Info

Part Number: PEOEU-EM-20 / Vendor ID Number: 149 / Custom:

Decorative LED AC/Emergency Light

319

Pack Of: 1

227 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 10.50"

Width: 6.13"

Length: 10.47"

Product Overview

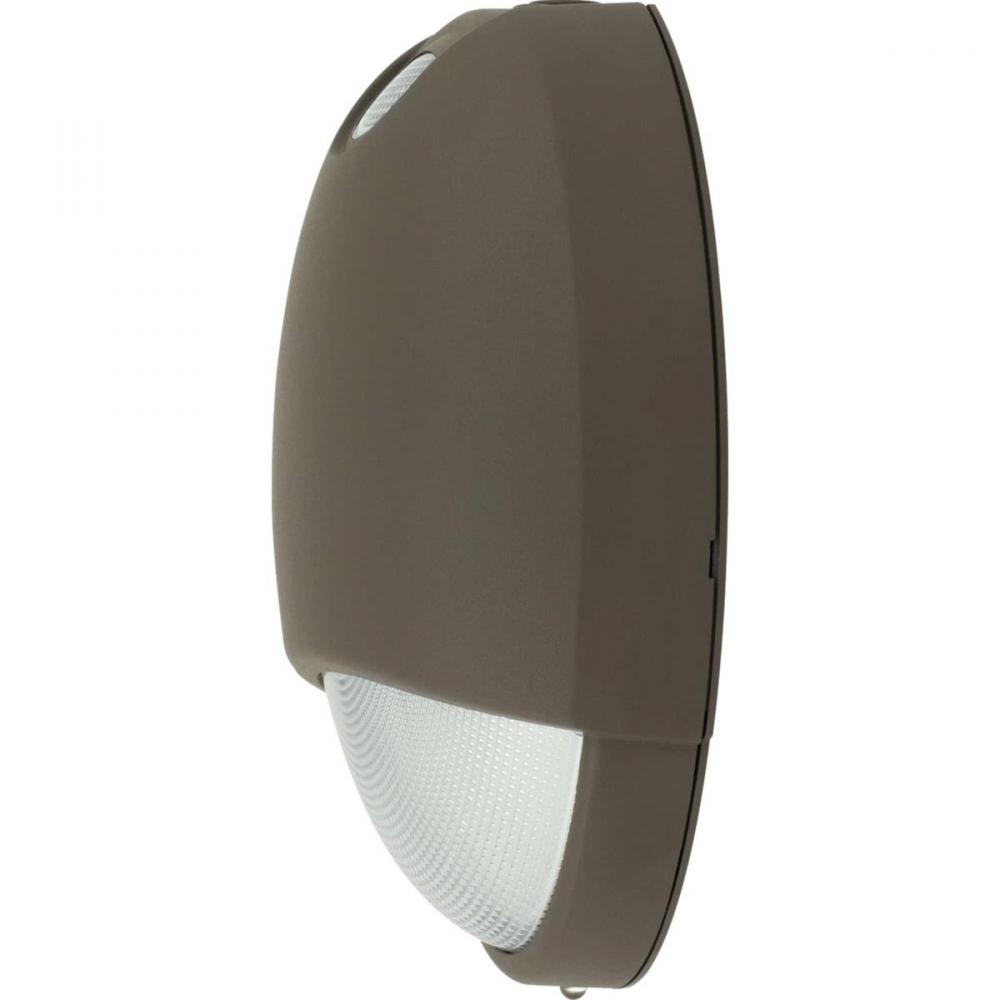

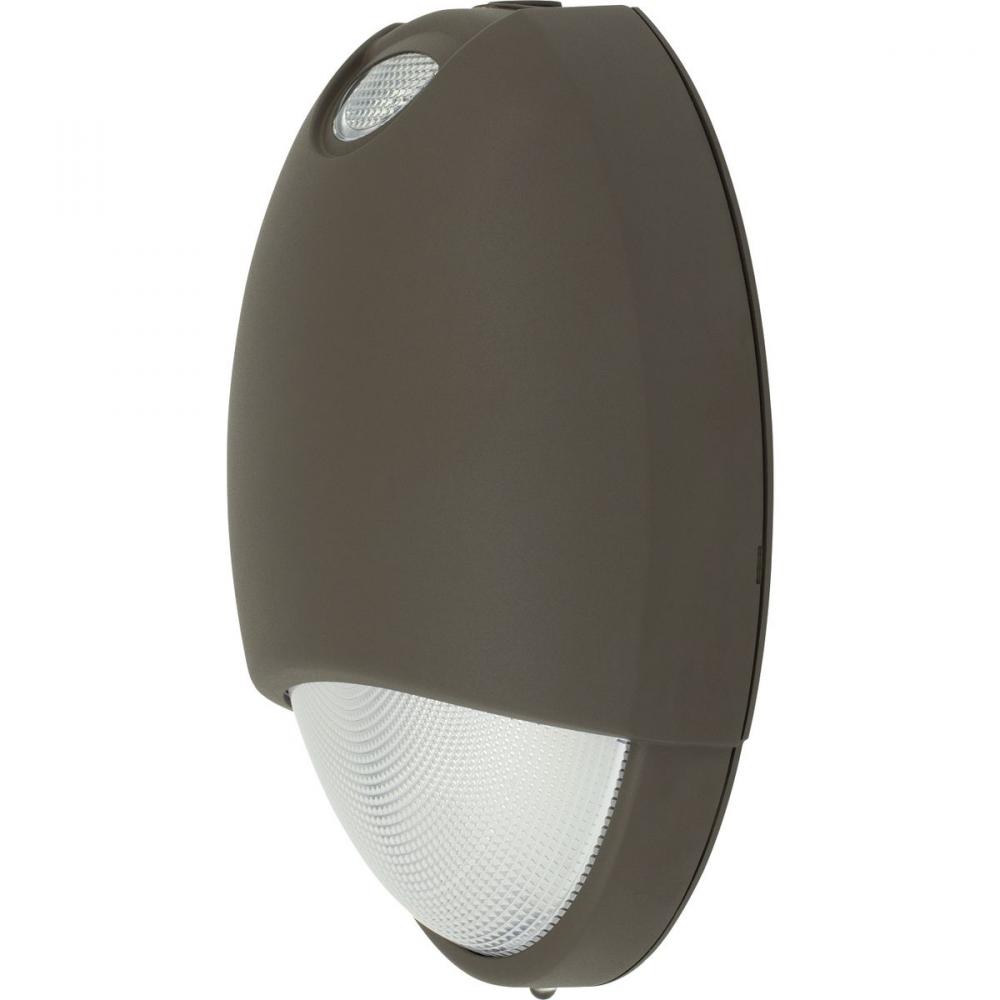

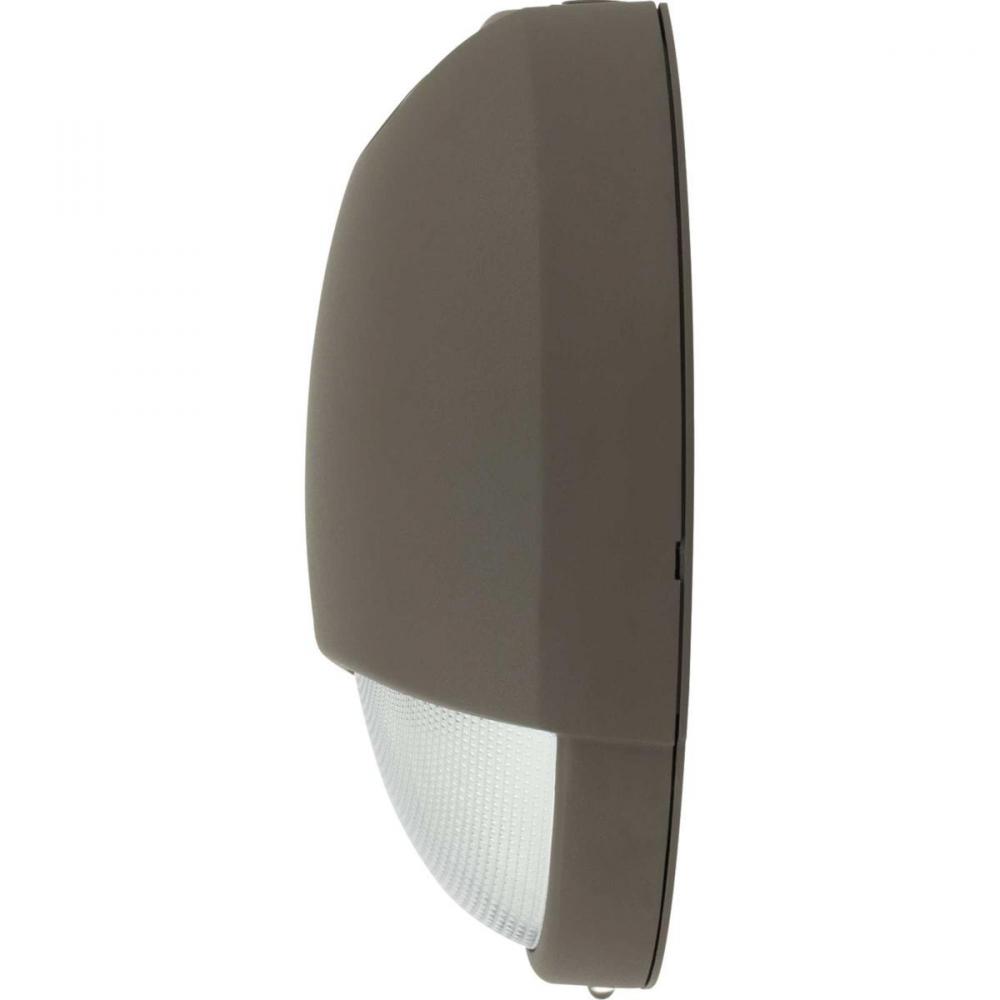

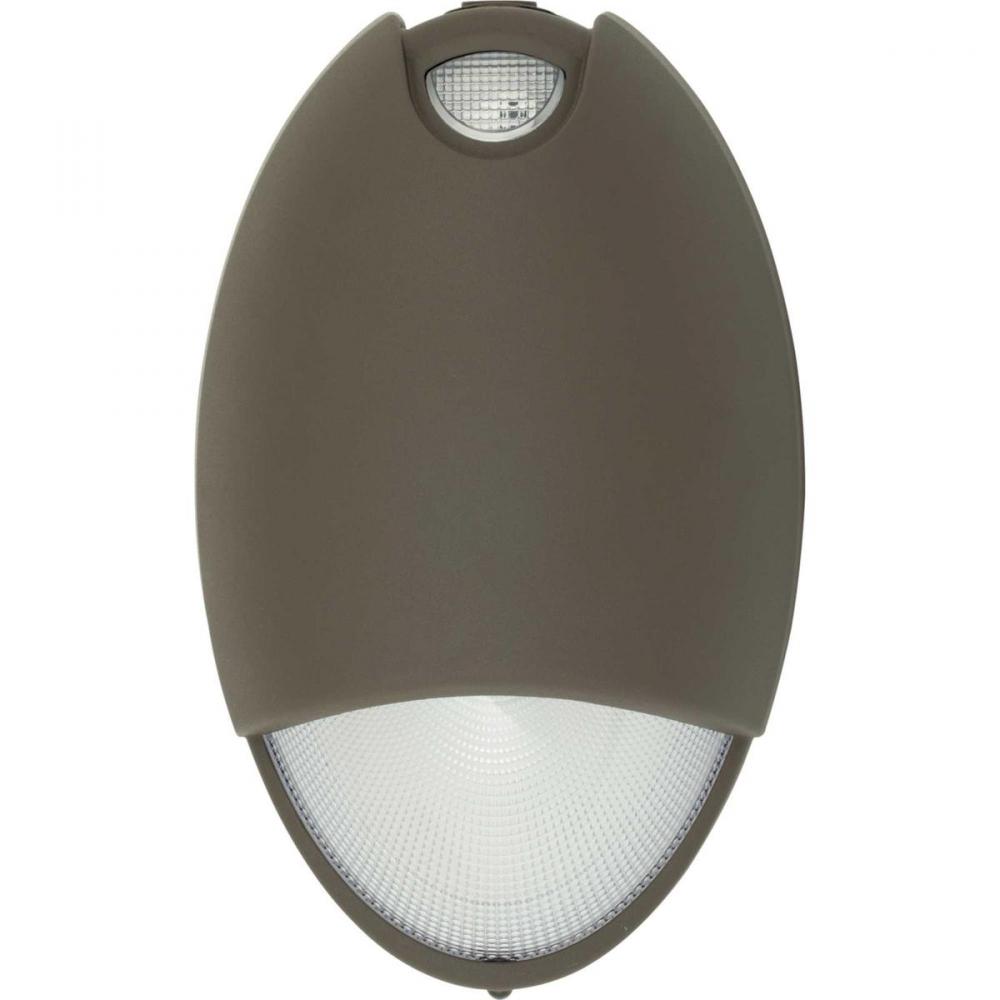

The PEOEU Series offers LED performance in "normally on" AC and emergency lighting modes. The unit has a prismatic polycarbonate refractor with a durable die-cast aluminum housing with a durable dark bronze powder coated finish. The housing is fully sealed and gasketed. It is designed for wall mounting with a universal K/O pattern in the back-plate for installation to most standard size junction boxes. Illumination is provided by 2 high power LEDs driven at 3 watts each. The PEOEU Series can be applied in areas that are susceptible to rain and severe moisture, such as parking decks and outdoor commercial applications.

Product Availability

Item appears to be in stock and ready to ship

Included Items

Info & Guides

Click Here to View Spec Sheet

Click Here to View Installation Sheet

Click Here to View Warranty

Technical Details

Details

Category:

Utility

Subcategory:

Emergency Lights

Finish:

Bronze /vendors/vendorImages bronze.jpg

Style:

Traditional

Option:

Energy Efficient

Wet Rated

LED

Title 20

Mount Type:

Flush Mount

Location Rating:

Wet Rated

Category:

Exit Sign/Emergency

Finish:

Bronze

Option:

Energy Efficient

Title 20

Wet Rated

Family:

Exit Signs

Glass:

Prismatic

Voltage:

Universal 100-300 VAC

Number of Bulbs:

2 Bulbs

Bulb Type:

LED

Depth:

3.63

Introduction Date:

01/16/2017

Kelvin:

5500

Keyword(s):

exit;emergency

Length:

10.47

Material:

Die-Cast Aluminum

Ship Carton Height:

4.00

Ship Carton Length:

12.00

Ship Carton Width:

7.75

Ship Weight:

4.00

Special Features:

LED life-cycle of more than 10 years.;Includes self-diagnostics feature to monitor proper operation.;Includes long-life, 4.8 VDC Nickel Cadmium battery for UL recognized 90 minute operation.;Universal 100-300VAC input.;Full re-charge within 24 hours.;Water

Vendor Ship Method:

Non UPS Shippable False

Warranty:

2 year full unit

Weight:

4.00

Wire Included:

6 in

Americans with Disabilities Act:

Bulb Base:

LED

Bulb Included:

Yes

Can be Mounted Up or Down:

Canopy Shape:

Oval

Certified Listed Location:

Wet Location Listed

Construction Material Main Part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

Dark Sky:

Design Series:

Energy Efficient:

Yes

Energy Star:

Finish Type:

Painted

Frequency Rating:

60 Hz

Glass Shape:

Refractor

Grounded Convenience Outlet included:

JA8:

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

Lens Shade Material:

Polycarbonate

Mount Location:

Wall

MTO:

Operating Temperature Celcius Max:

30 °C

Prop 65:

View

Prop 65 Description:

View

Room Type:

Emergency

Safety Rating:

UL924

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Weight of Fixture Exceeds NEC Limits:

Width Diameter:

6.125 in W.
