Item Sales Info

Part Number: P5675-82/30K / Vendor ID Number: 149 / Custom:

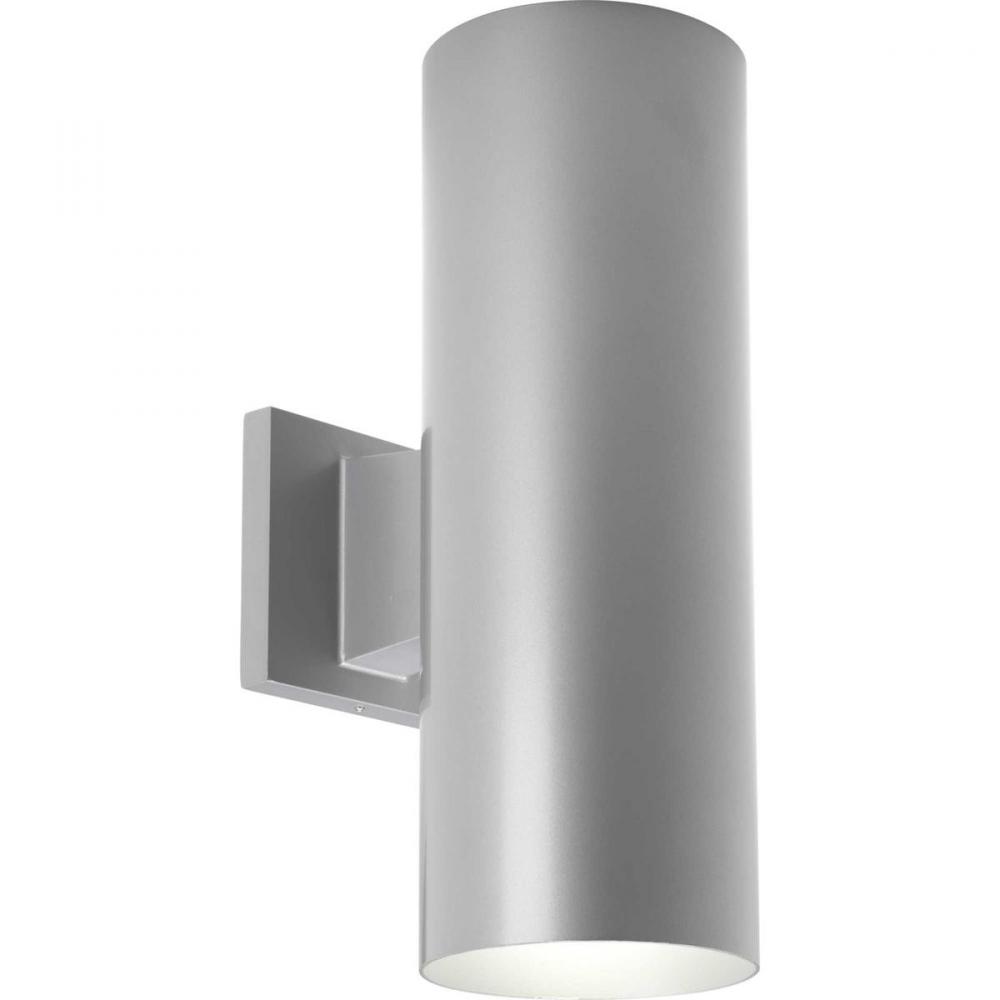

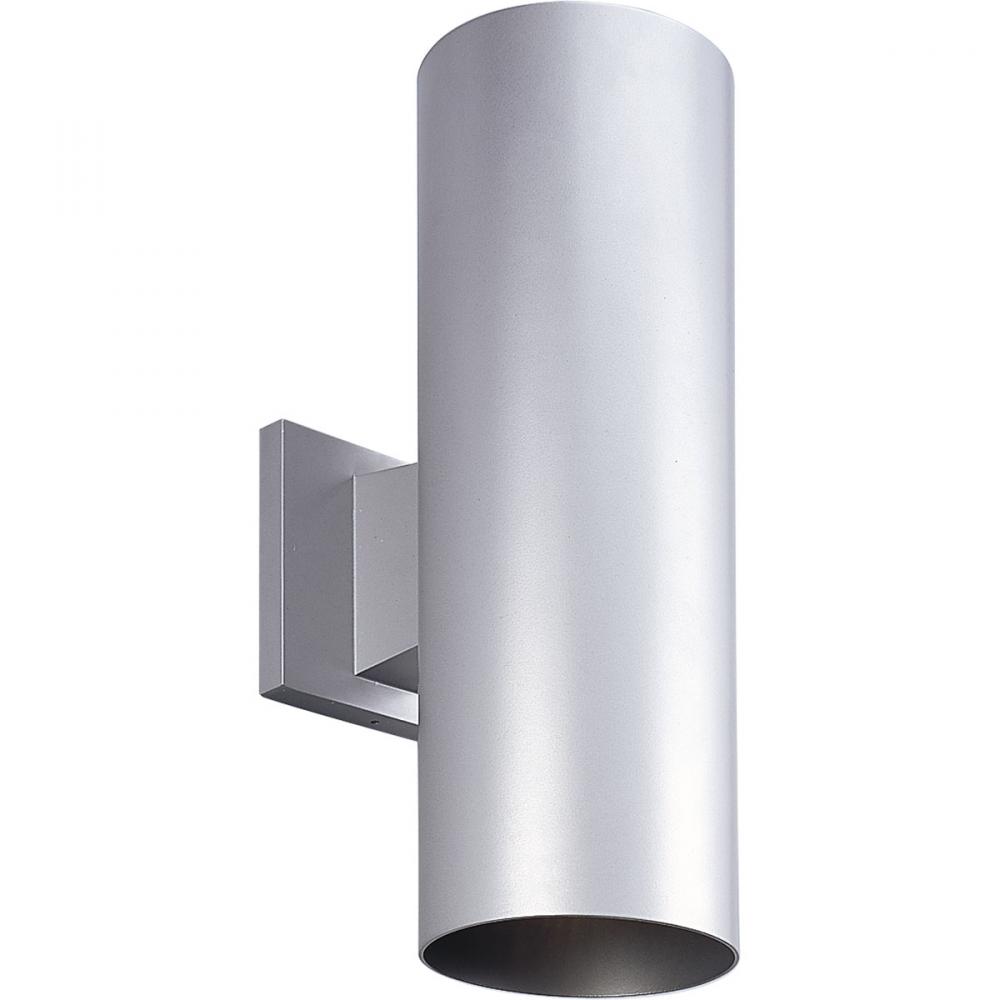

5" LED Outdoor Up/Down Cylinder

181

Pack Of: 1

194 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 14.00"

Width: 8.88"

Length: 5.00"

Product Overview

5" up/down wall cylinder 5" LED up down wall cylinder - wall lantern in Metallic Gray. The P5675 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. Specify P860045 top cover lens for use in wet locations.

Product Availability

Item appears to be in stock and ready to ship

Included Items

Finish:

Lamp Wattage:

Additional options that would change other selections

Lumens per Watt:

Additional options that would change other selections

Material:

Additional options that would change other selections

Info & Guides

Click Here to View Spec Sheet

Click Here to View Installation Sheet

Click Here to View Warranty

Technical Details

Details

Category:

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Gray /vendors/vendorImages gray.jpg

Style:

Contemporary

Transitional

Option:

Energy Efficient

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

Damp Rated

LED

Title 20

Mount Type:

Flush Mount

Location Rating:

Wet Rated

Category:

Outdoor

Finish:

Metallic Gray

Style:

Modern;Transitional

Option:

Damp Rated

Energy Efficient

Title 20

Title 24

Family:

Cylinder

Voltage:

120

Number of Bulbs:

2 Bulbs

Backplate Height:

4.50

Backplate Width:

4.50

Bulb Hours:

60000

Bulb Type:

Module

Depth:

8.88

Height To Center of Outlet:

8.00

Introduction Date:

01/01/2015

Kelvin:

3000

Keyword(s):

lantern;exterior light;outdoor light

Length:

5.00

Lumens / Light Output:

1100

Material:

Die Cast and Extruded Aluminum

Ship Carton Height:

15.62

Ship Carton Length:

9.06

Ship Carton Width:

6.25

Ship Weight:

4.69

Special Features:

Metallic Gray finish.;Powder coat finish.;Die-cast aluminum construction with durable powder coated finish;1,100 lumens 26 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

2.80

Wire Included:

6 in

Americans with Disabilities Act:

Backplate Depth:

2.95

Bulb Base:

Module

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

Canopy Shape:

Square

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Construction

Country of Origin:

Dark Sky:

Design Series:

Dimming Compatability:

Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P

Dimming Protocol:

ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Finish Type:

Powder Coat Paint

Frequency Rating:

60 Hz

Grounded Convenience Outlet included:
