Part Number: MIL72EQTUZ-120 / Vendor ID Number: 4249 / Custom:
24HR FLUSH MOUNT W/BAT BACKUP 120V

24HR FLUSH MOUNT W/BAT BACKUP 120V

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.25"
Width: 3.25"
Product Overview

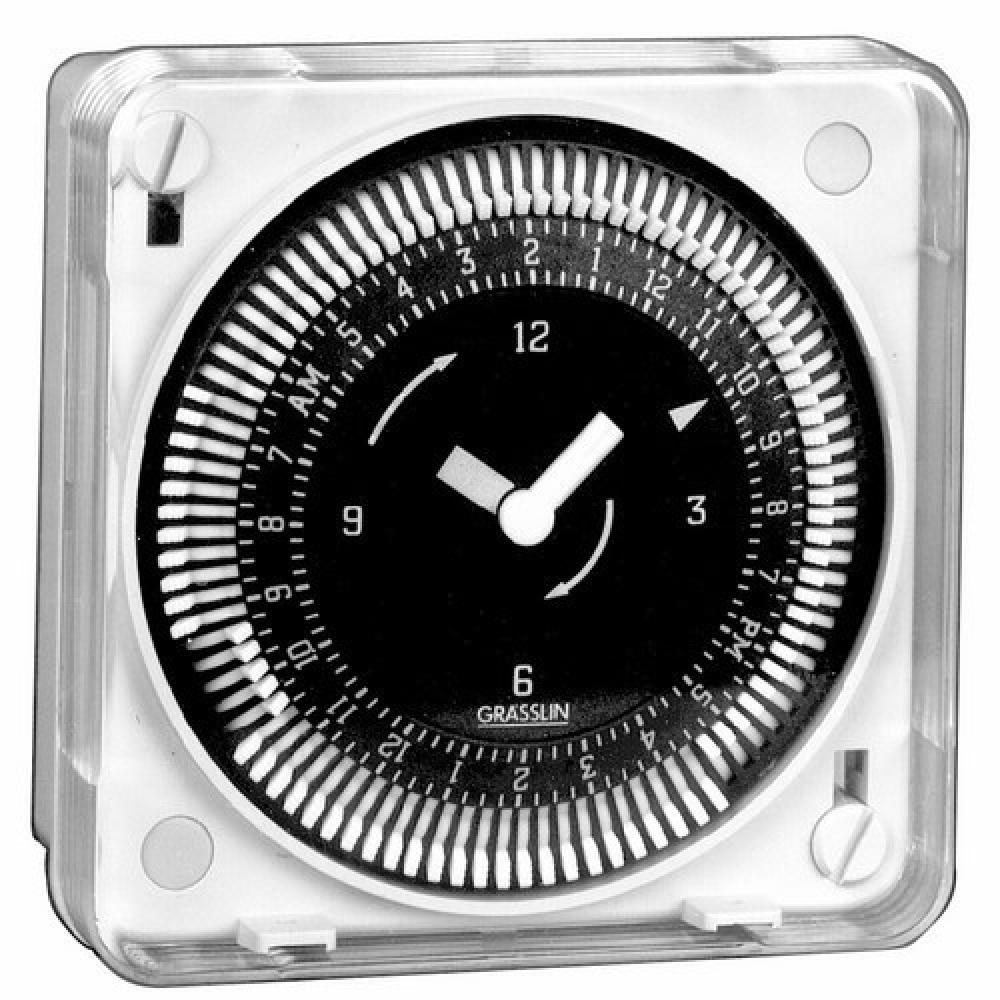

The 24HR FLUSH MOUNT W/BAT BACKUP 120V The MIL72 24-Hour timer modules are designed to be mounted inside a control panel and can accommodate flush mounting. The time switches are light-duty commercial switches ideal for 24 VAC single phase applications, such as lighting control, HVACR, pumps, motors, fan controls, access controls, OEM applications, agricultural facilities, and general purpose electrical circuits.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Timer Duration:
Timing Range:
Additional options that would change other selections
Voltage Rating:
Info & Guides
File
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Application:
General Purpose, Agricultural Facilities, Commercial, Lighting Control, HVACR, Pumps, Motors, Fan Controls, Access Controls, OEM, Indoor/Outdoor, HVACR
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 120 - 250 VAC
Country Of Origin:
DE
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
3.7500 IN
Mounting:
Flush Mount
Number Of Poles:
1
Operating Temperature:
-4 to +131 DEG F, -20 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.83 LENGTH X 2.83 WIDTH X 2.60 HEIGHT IN, 72 LENGTH X 72 WIDTH X 66 HEIGHT MM
Spec Sheet:
Spec Link
Special Features:
Features: Synchronous drive or quartz drive with battery backup, Available with or without override, True clock face, easy to set, Surface/DIN Rail or Flush Mount, Clear plastic dust-cover
Standard:
CE, cCSAus Certified, cULus Listed, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Electromechanical
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1350
Weight:
0.315 L
