Part Number: GBR35-CC-TRIO-WH / Vendor ID Number: 776 / Custom:

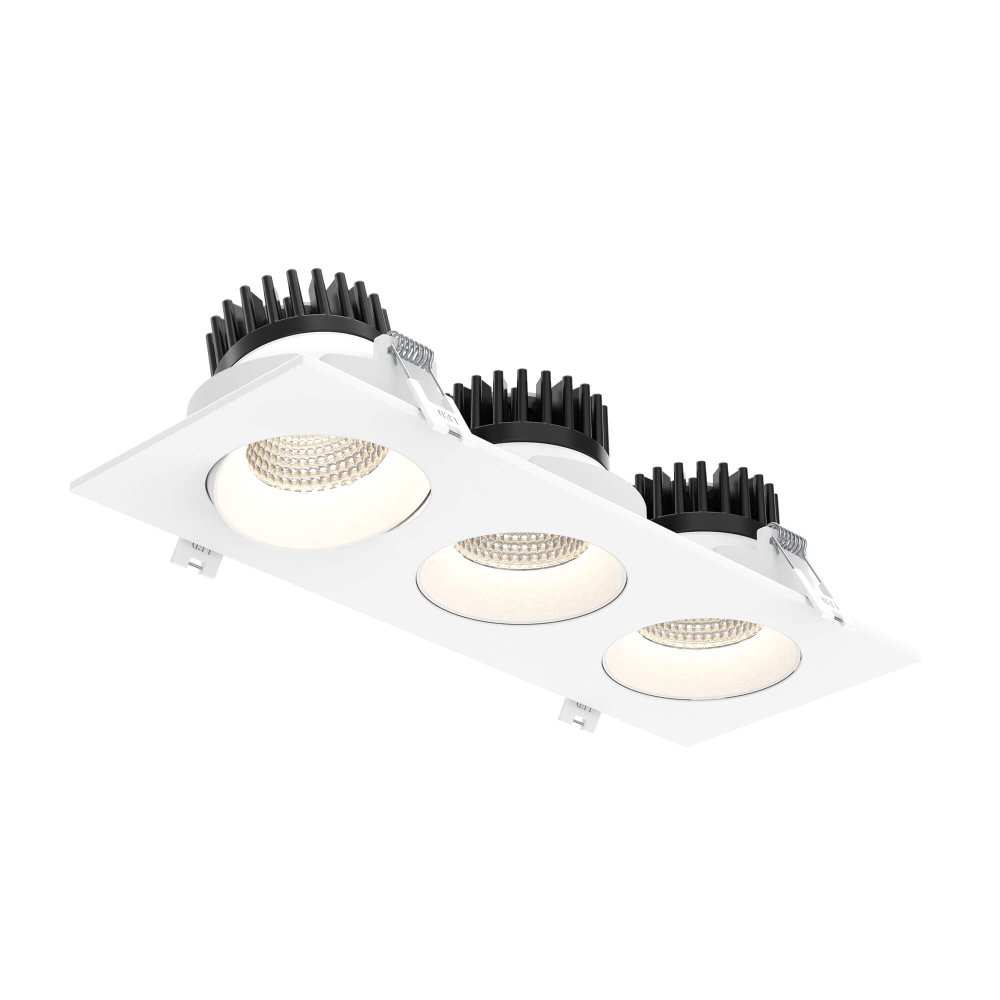

Triple GBR35 Gimbal Downlight

193

Pack Of: 1

Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

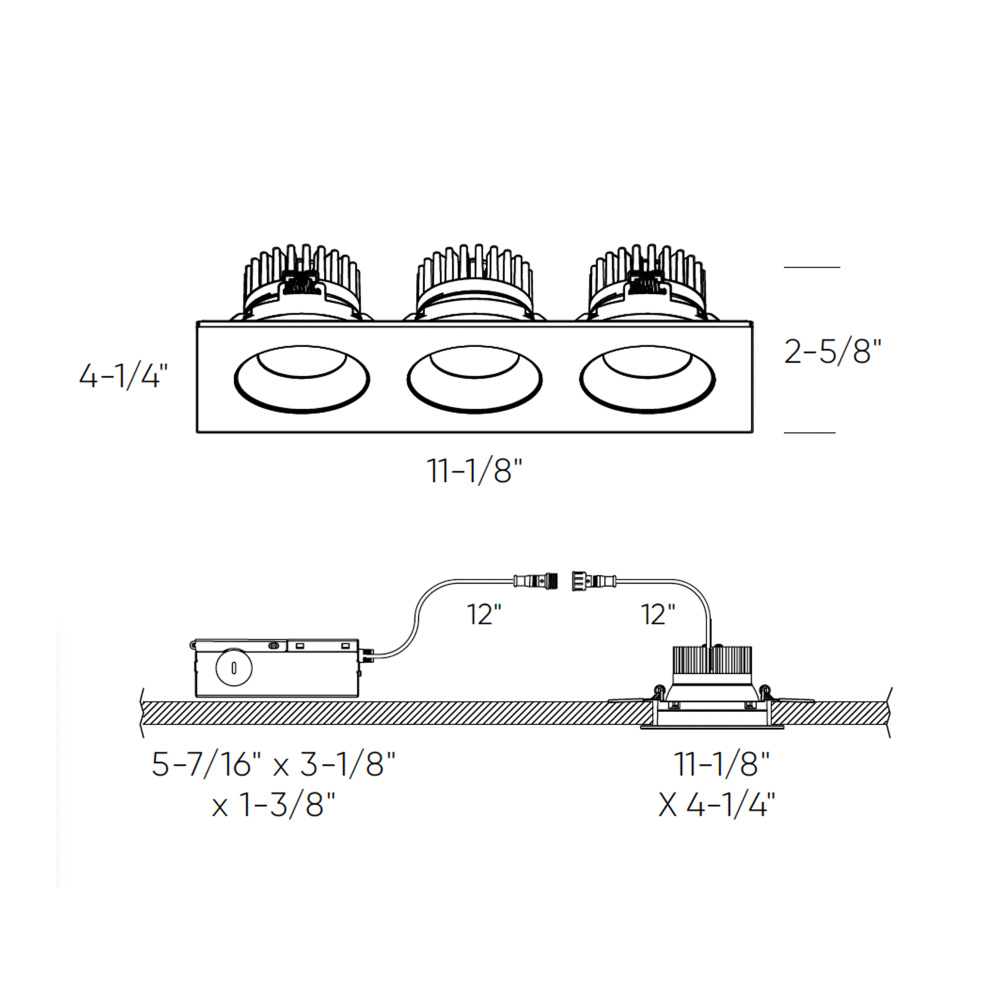

Dimensions

Height: 2.50"

Width: 4.25"

Length: 11.14"

Product Overview

Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Finish:

Additional Information

30° tilting, 360° rotation

5-year warranty

Every fixture includes a junction box with an integrated driver

Suitable for wet locations

Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K in canopy

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Technical Details

Details

Category:

Directional Lights

Subcategory:

Directional Recessed Lights

Finish:

White /vendors/vendorImages white.jpg

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

Category:

Recessed

Subcategory:

Directional

Finish:

White

Option:

Outdoor

Title 24

Family:

Revolve

Voltage:

120 V

Number of Bulbs:

3 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

4.5

Ship Carton Length:

12.25

Ship Carton Width:

Ship Weight:

2.6

Warranty:

5 Years Limited

Weight:

2.3

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

3010

Dimmer Type:

Triac / ELV

Energy Star:

IC Certification:

Yes

Indoor:

Yes

IP Rating:

IP44

Lens Material:

Acrylic

Location Rating:

Wet Rated

Max Wattage:

36 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Safety Rating:

ETL Approved

Title 24:

Yes

Wiring:

Hardwired
