Item Sales Info
Part Number: GPN6-CC-WH / Vendor ID Number: 776 / Custom:
Multi CCT Round gimbal recessed light

Multi CCT Round gimbal recessed light

65
06
Pack Of: 1
539 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.75"
Width: 7.00"
Length: 7.00"
Product Overview
The Fusion is a slim gimbal recessed panel with 5CCT, offering advanced lighting flexibility for precise illumination. Its gimbal design allows users to direct light as needed, and the 5CCT feature provides color temperature versatility, making the Fusion an ideal choice for both residential and commercial applications.
Product Availability
    Item appears to be in stock and ready to ship
Specific Products:
Additional Information
110° beam angle
25° tilting, 360° rotation
Air-tight certified as per ASTM E283-04
IC certification (suitable for direct contact with insulation)
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Sheet
Click Here to View Spec Sheet
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Category:
Recessed
Subcategory:
Directional
Finish:
White
Option:
Energy Star
Outdoor
Title 24
Family:
Fusion
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
3.6
Ship Carton Length:
7.5
Ship Carton Width:
7.4
Ship Weight:
1.75
Warranty:
5 Years Limited
Weight:
1.5
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
110
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
1050
Dimmer Type:
Triac / ELV
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
Lens Material:
PC
Location Rating:
Wet Rated
Max Wattage:
13 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-25°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
12.25
Shipping Master Length:
16
Shipping Master Quantity:
12
Shipping Master Weight:
20
Shipping Master Width:
15.5
Title 24:
Yes
Wiring:
Hardwired
More In This Collection From Fusion
2 Items
Dals GPN6-CC-WH - Multi CCT Round gimbal recessed light
Multi CCT Round gimbal recessed light
(GPN6-CC-WH) Dals
539 In Stock
Compare Item
List Price:
$65
06
$
Pack Of: 1
Compare @: $65.06 for 1
Qty
2 Items

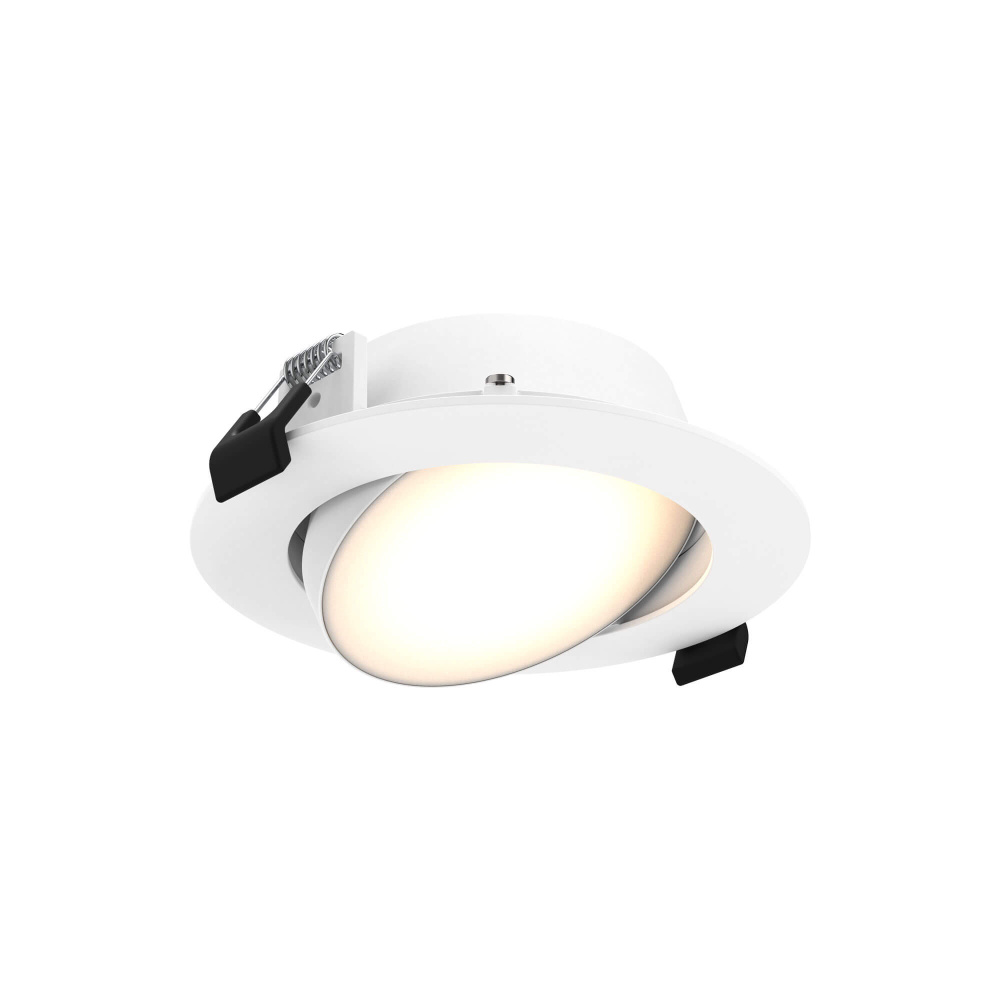

Dals GPN4-CC-WH - Multi CCT Round gimbal recessed light
