Part Number: DSWC07-CC-V-BK / Vendor ID Number: 776 / Custom:

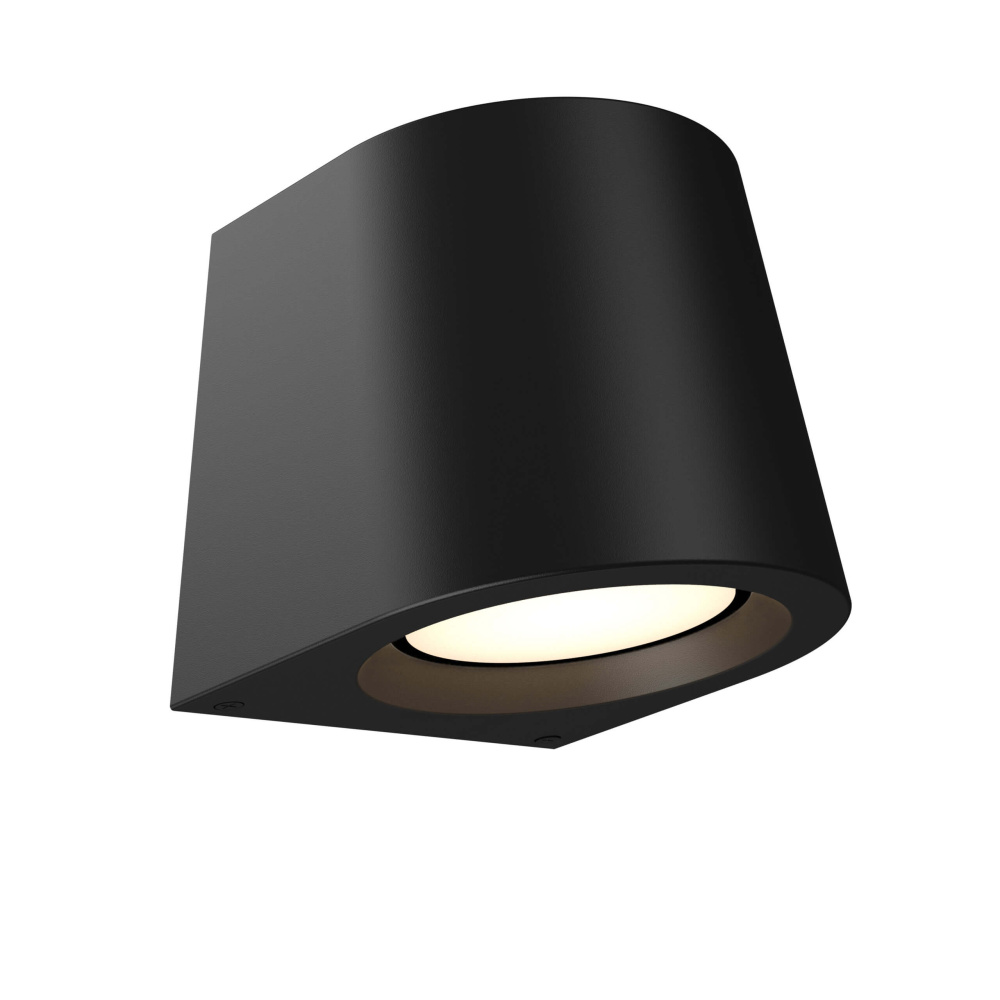

7in wall sconce with photocell universal 120V-347V, 0-10V dimming

7in wall sconce with photocell universal 120V-347V, 0-10V dimming

343
50
Pack Of: 1
Call for Availability
Qty
Product Specification

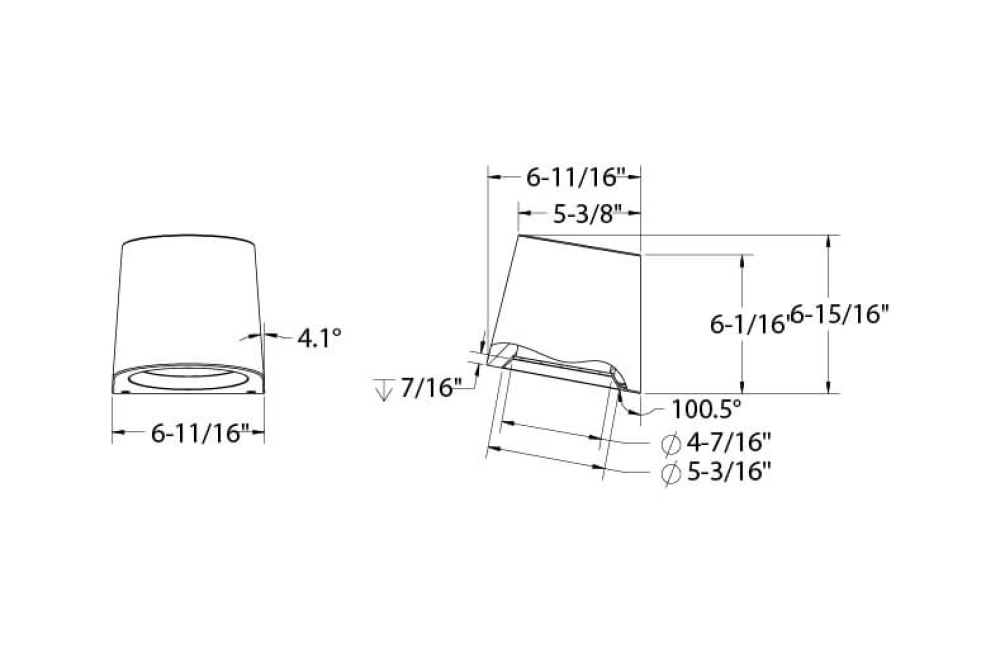

Dimensions
Height: 7.00"
Width: 6.79"
Length: 6.69"
Product Overview
These 5? and 7? dark-sky friendly wall fixtures offer focused, energy-efficient illumination while minimizing light pollution, making them ideal for environmentally conscious outdoor spaces. The photocell feature automatically adjusts to changing light conditions, providing energy-efficient illumination without requiring manual control.
Product Availability
    Purchase now and we'll ship when it's available
Additional Information
5-year warranty
Die-cast aluminum housing
Integrated dimmable driver
Integrated photocell for automatic lighting control (can be disabled)
Switch-selectable CCT: 2200k, 2700K, 3000K, 3500K, 4000K
Info & Guides
Technical Details
Details
Category:
Exterior
Subcategory:
Sconces
Finish:
Black /vendors/vendorImages black.jpg
Option:
Dark Sky
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Category:
Wall
Subcategory:
Sconce
Finish:
Black
Option:
Dark Sky
Outdoor
Title 24
Family:
Shield
Voltage:
120 V/ 277 V/ 347 V
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Kelvin:
2200, 2700, 3000, 3500, 4000
Material:
Aluminum
Ship Carton Height:
6.13
Ship Carton Length:
7.13
Ship Carton Width:
6.9
Ship Weight:
4.5
Warranty:
5 Years Limited
Weight:
4.1
Beam Angle:
100
Bulb CRI:
90
Country of Origin:
China
Dark Sky:
Yes
Delivered Lumens:
1993
Dimmer Type:
0-10V
IP Rating:
IP54
Lens Material:
Glass
Location Rating:
Wet Rated
Max Wattage:
24 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-30°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
13
Shipping Master Length:
14.4
Shipping Master Quantity:
4
Shipping Master Width:
7.5
Title 24:
Yes
Wiring:
Hardwired
