Part Number: RC06-CC-20-RGAZ-TL / Vendor ID Number: 776 / Custom:
No Image
Available

6in Modular Downlight, 5CCT, 20 degree Beam Angle, Regressed, Alzak,Trimless

212
50
Pack Of: 1
Call for Availability
Qty
Product Specification

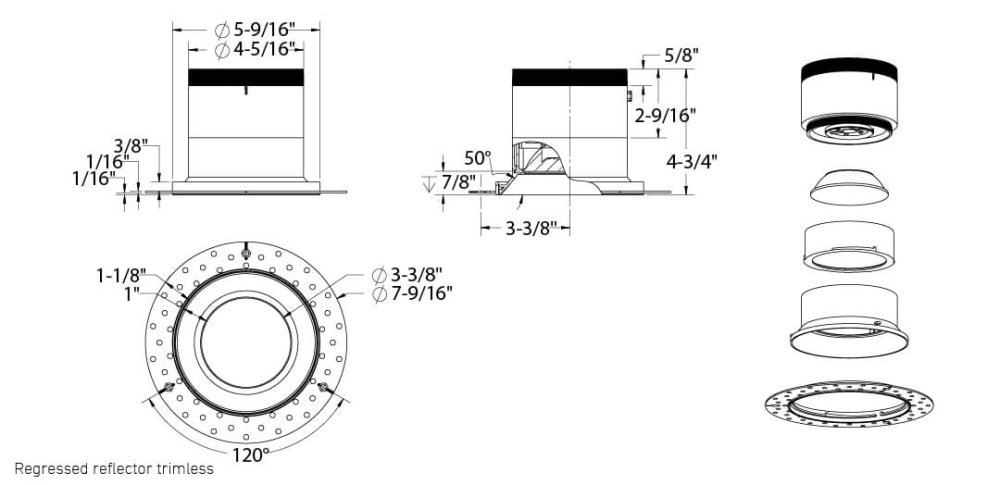

Dimensions
Height: 1.45"
Width: 6.43"
Length: 6.43"
Product Overview
A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces. 288 possibilities!
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
20°, 35°, or 60° beam angles included
Customizable trims and reflector shapes and colors
Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
Regressed, Slope ceiling and Trimless options
Rotary dial CCT switch
Info & Guides
Technical Details
Details
Finish:
Miscellaneous /vendors/vendorImages miscellaneous.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Category:
Recessed
Subcategory:
Modular
Finish:
Alzak
Option:
Energy Star
Outdoor
Title 24
Family:
Versa
Voltage:
120 V/ 277 V/ 347 V
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
8.1
Ship Carton Length:
9.1
Ship Carton Width:
8.1
Ship Weight:
3.5
Warranty:
5 Years Limited
Weight:
0.25
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
20
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
3000
Dimmer Type:
Triac / ELV
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
Lens Material:
Glass
Location Rating:
Wet Rated
Max Wattage:
24 W/30 W/36 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
11.81
Shipping Master Length:
16
Shipping Master Quantity:
20
Shipping Master Weight:
9.5
Shipping Master Width:
16
Title 24:
Yes
Wiring:
Hardwired
