Part Number: DRR2-CC-WH / Vendor ID Number: 776 / Custom:

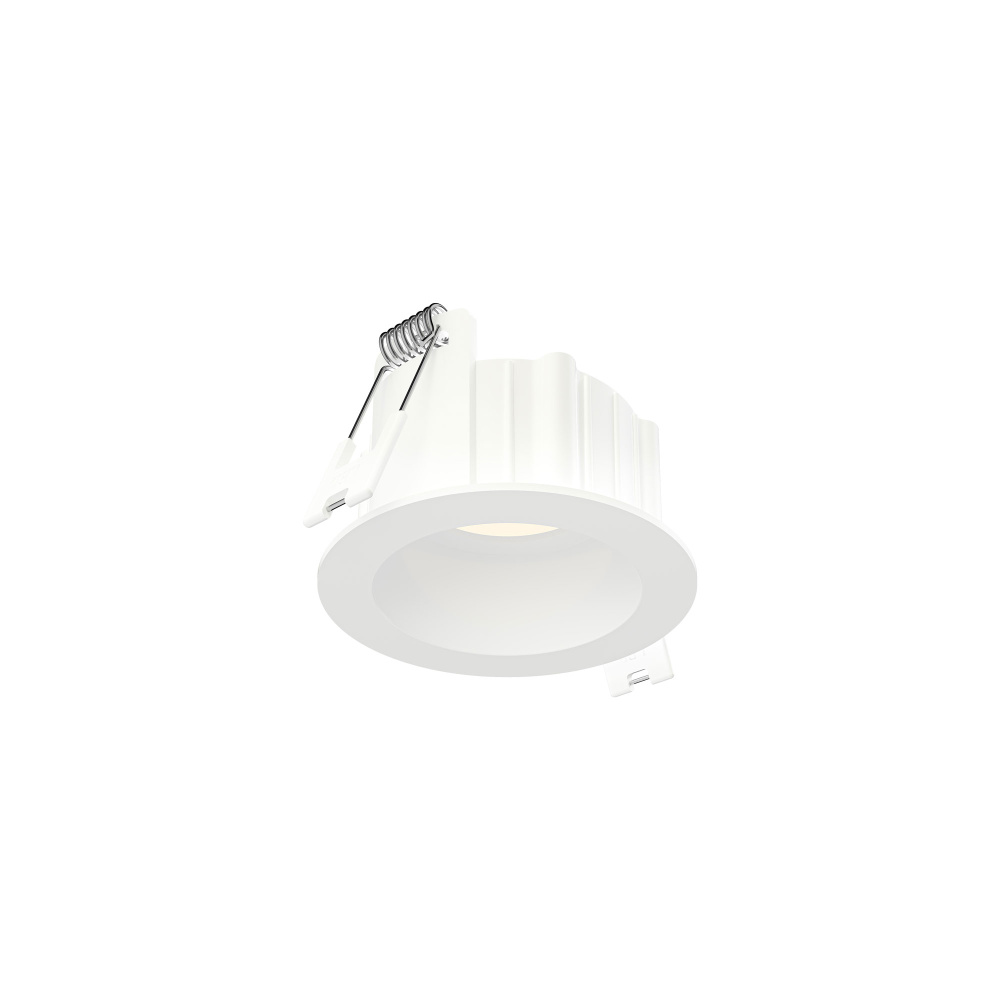

2'' 5CCT 1" deep regressed panel

Pack Of: 1

1485 In Stock

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

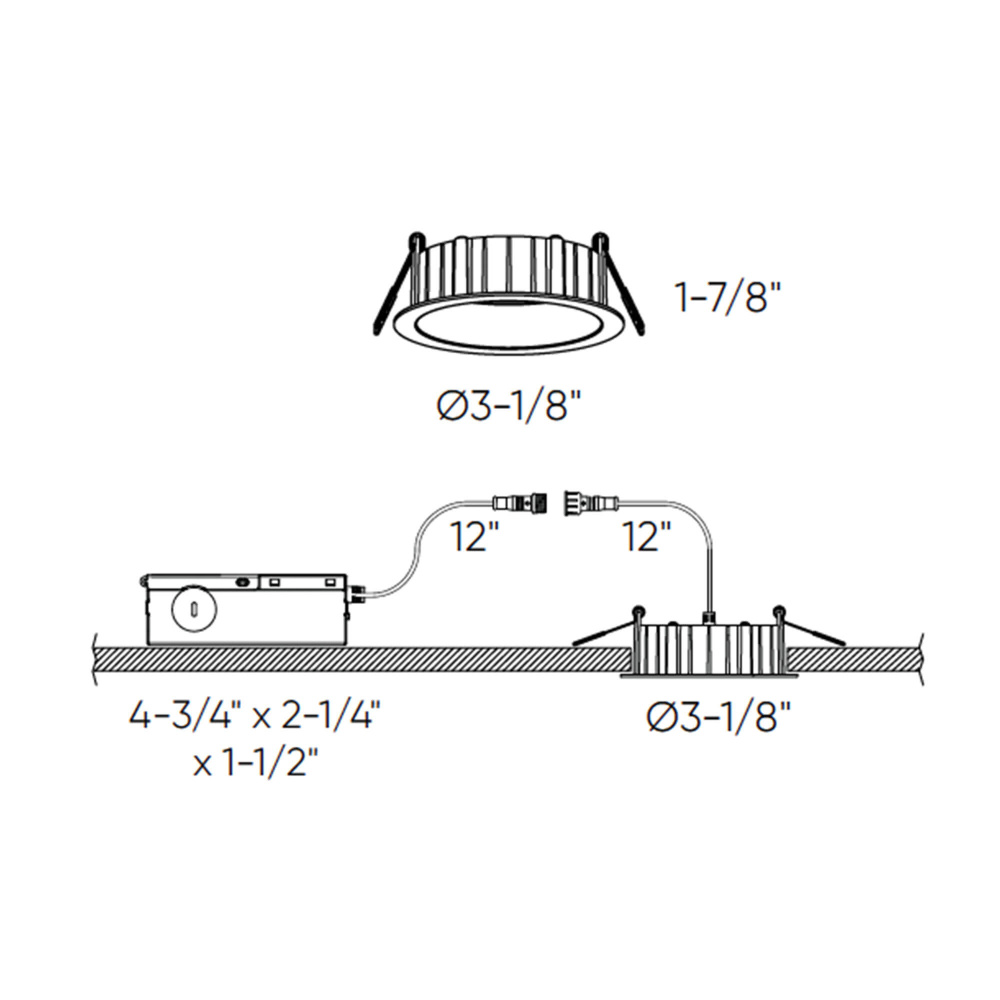

Dimensions

Height: 1.88"

Width: 3.13"

Length: 3.13"

Product Overview

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.

Product Availability

Item appears to be in stock and ready to ship

Specific Products:

Additional Information

Edge lit technology

Frosted lens

Over 50,000 hours of service life

Smooth 360 degree wide spread

Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White /vendors/vendorImages white.jpg

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Outdoor

Wet Rated

Prop 65 /vendors/vendorImages prop65.png

Category:

Recessed

Subcategory:

Regressed

Finish:

White

Option:

Outdoor

Prop 65

Title 24

Family:

Notch

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

2.76

Ship Carton Length:

6.1

Ship Carton Width:

4.72

Ship Weight:

1.5

Warranty:

5 Years Limited

Weight:

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

100

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

500

Dimmer Type:

Triac

Energy Star:

IC Certification:

Yes

Indoor:

Yes

IP Rating:

IP44

Lens Material:

Acrylic

Location Rating:

Wet Rated

Max Wattage:

9 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

View

Safety Rating:

ETL Approved

Shipping Master Height:

15.75

Shipping Master Length:

Shipping Master Quantity:

Shipping Master Width:

10.25

Title 24:

Yes

Wiring:

Hardwired
