Part Number: 65/987
/Vendor ID Number: 81
/Custom:

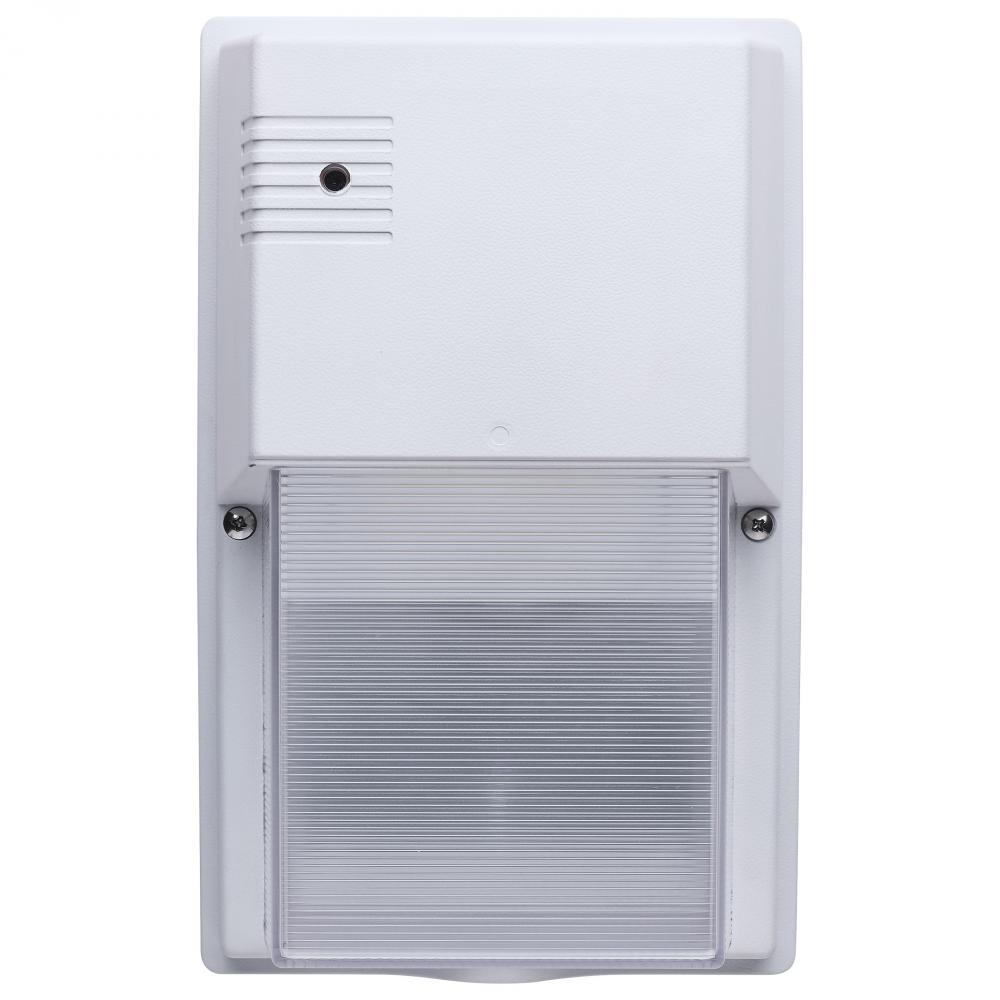

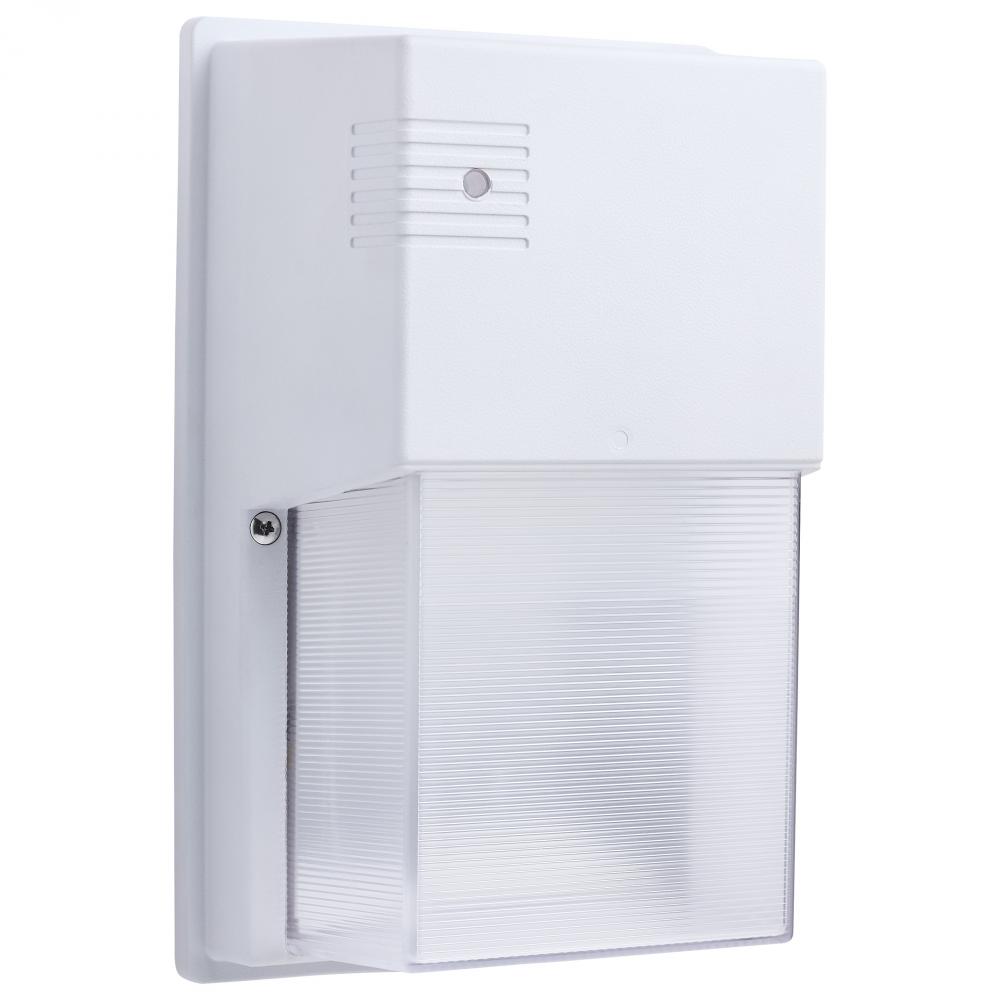

LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; White Finish
90
00
Pack Of: 1
188 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

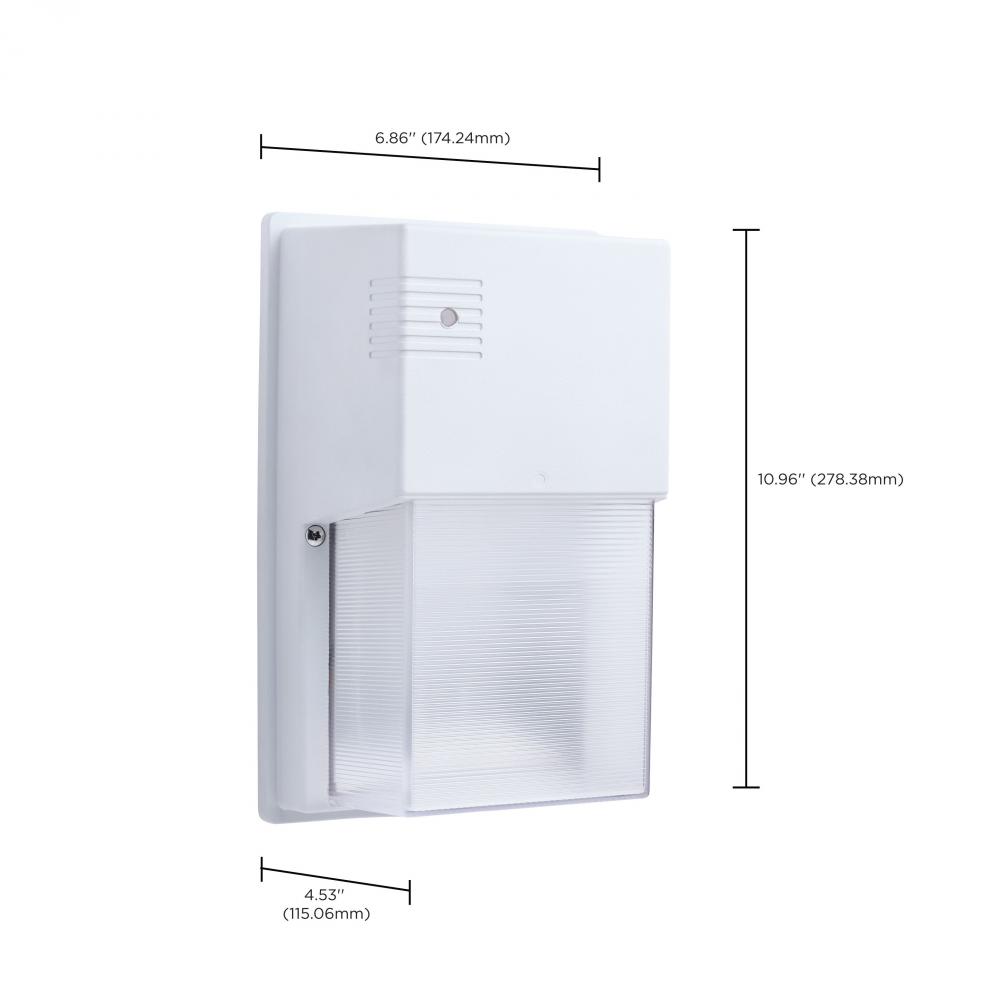

Dimensions
Height: 10.96"
Width: 6.86"
Finish
White
Product Overview
LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; White Finish
Product Availability
Item appears to be in stock and ready to ship

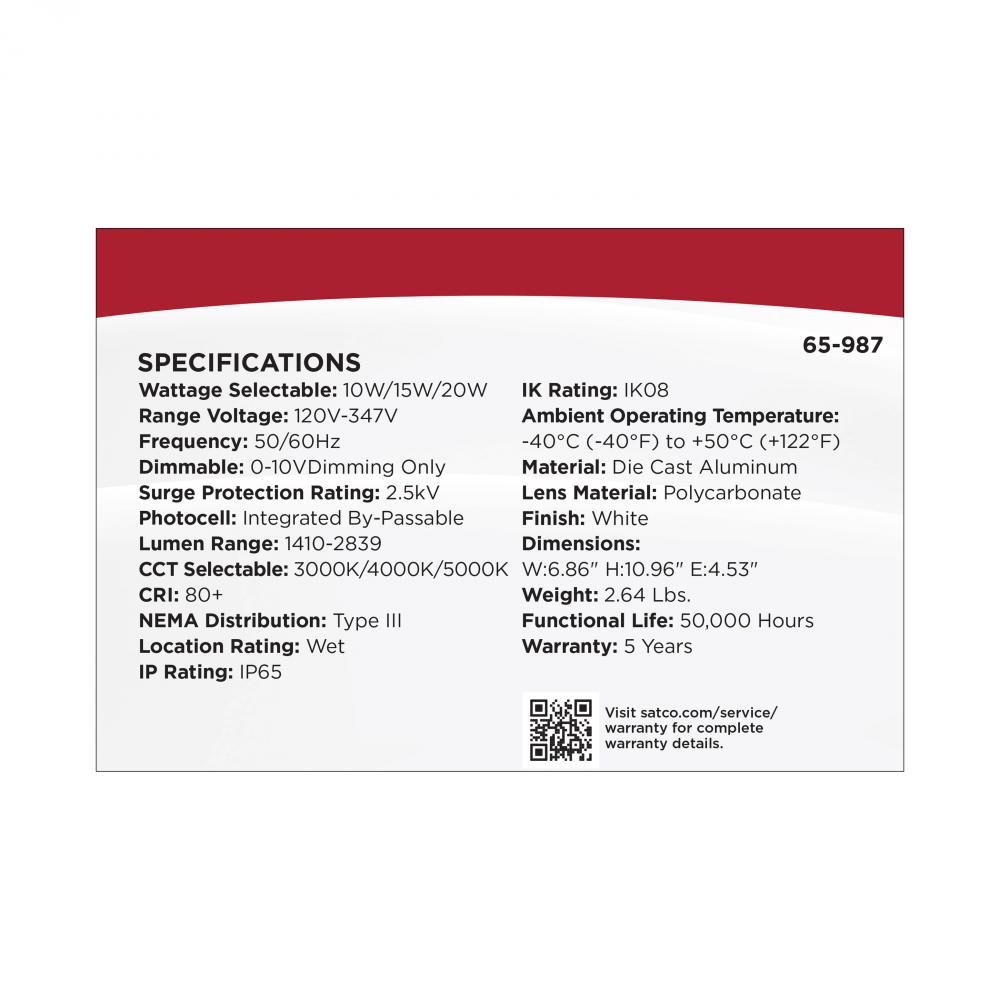

Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lights
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Wall Pack
Sub Category:
Standard
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5
Each Length:
7.5
Each Width:
11.5
Lumens:
1410L-2839L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.083-0.029/0.125-0.043/0.167-0.058A
ANSI Base:
Integrated
Beam Angle:
100
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead

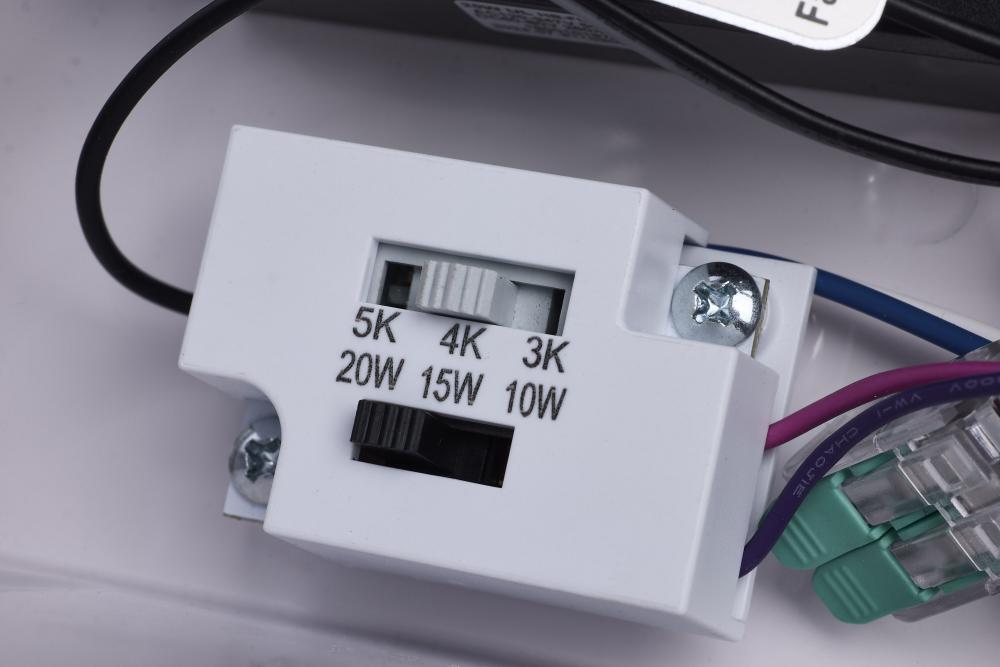

CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.2496
Each Quantity:
1
Efficacy:
141.00/141.63/141.95 LPW
FCC Compliant:
Yes

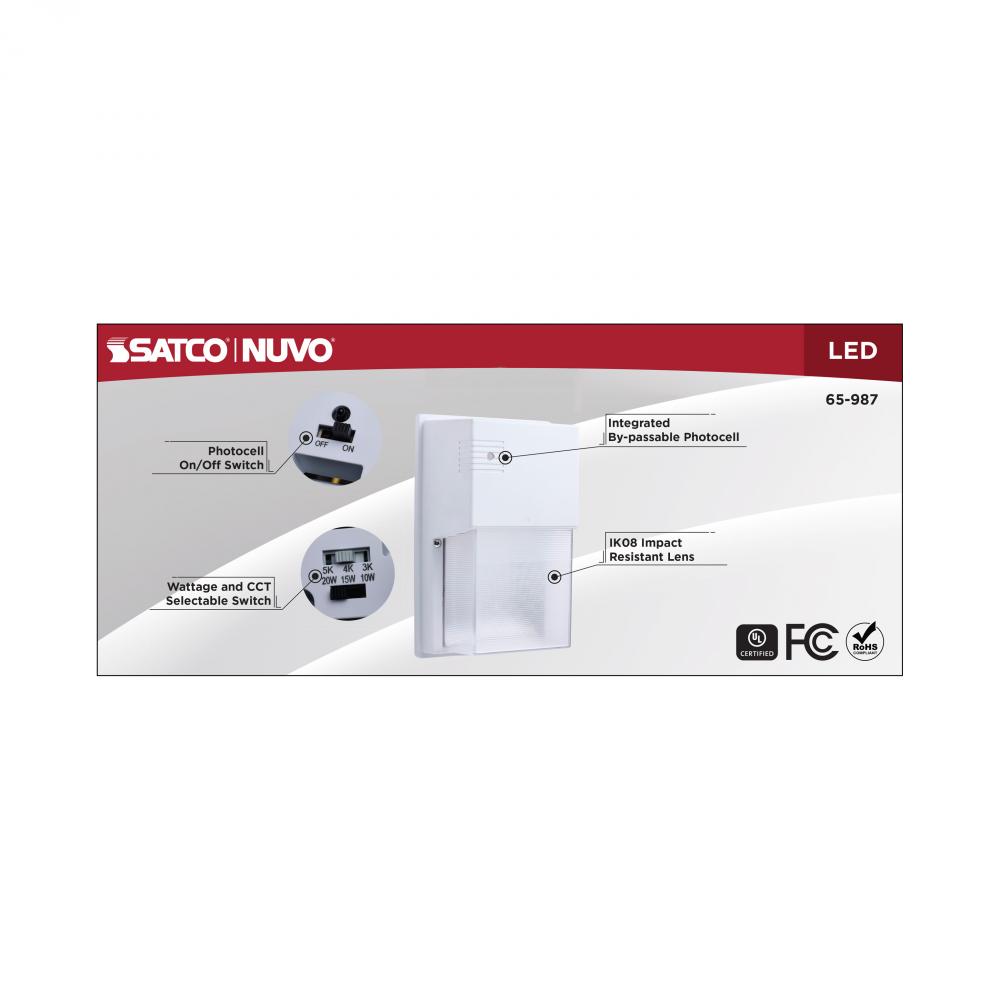

Feature 1:
CCT and Wattage Selectable
Feature 2:
White Die-Cast Aluminum
Feature 3:
0-10V dimming
Feature 4:
IP65 and IK08 Vandal Resistant
Feature 5:
Wet location rated
Feature 6:
B1-U3-G3 Rating
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Finish Family:
White
Flicker Free:
No
Flr Equiv:
42W
HID Equiv:
100W
Impact Rating (IK):
IK08
Incandescent Equivalent:
150W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No

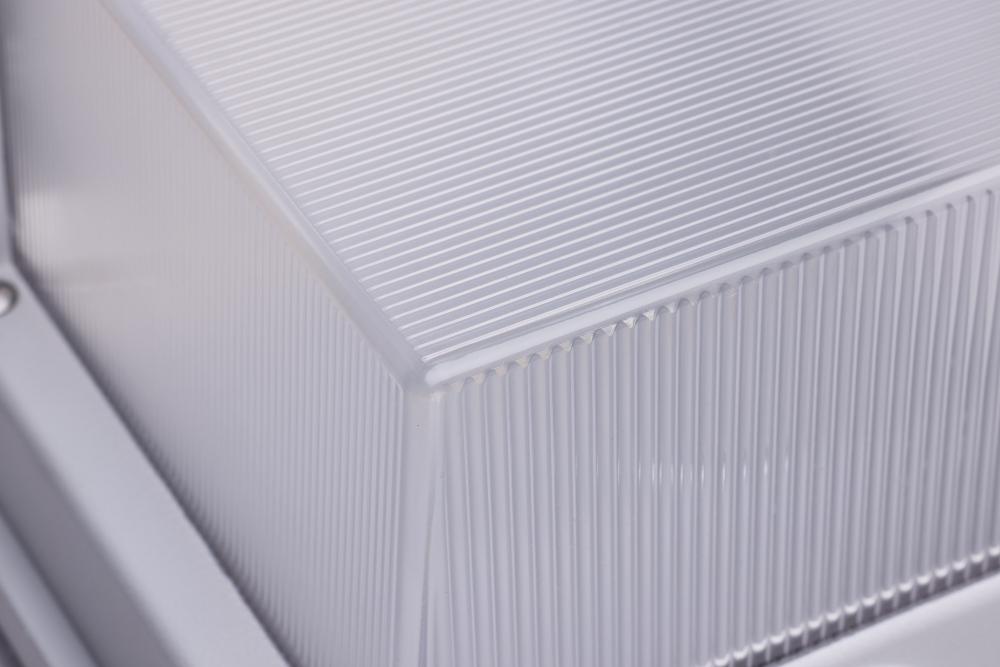

Lens Finish:
Prismatic
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-987 white LED entryway wall pack offers a sleek and versatile solution for outdoor lighting. Designed with a durable die-cast aluminum construction and an IK08 polycarbonate lens, this fixture ensures reliable performance in demanding e
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box

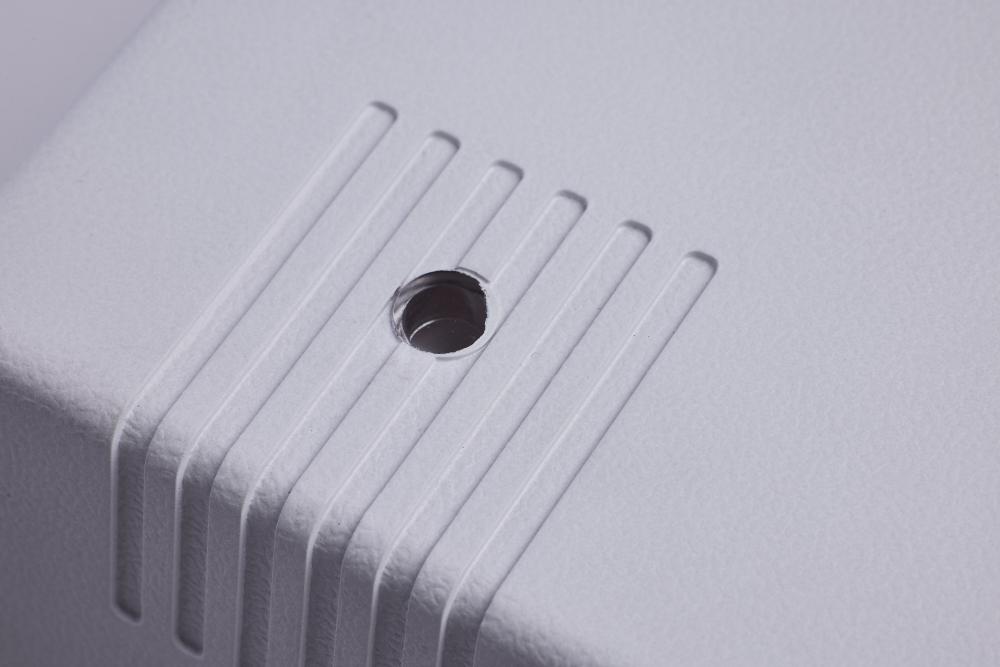

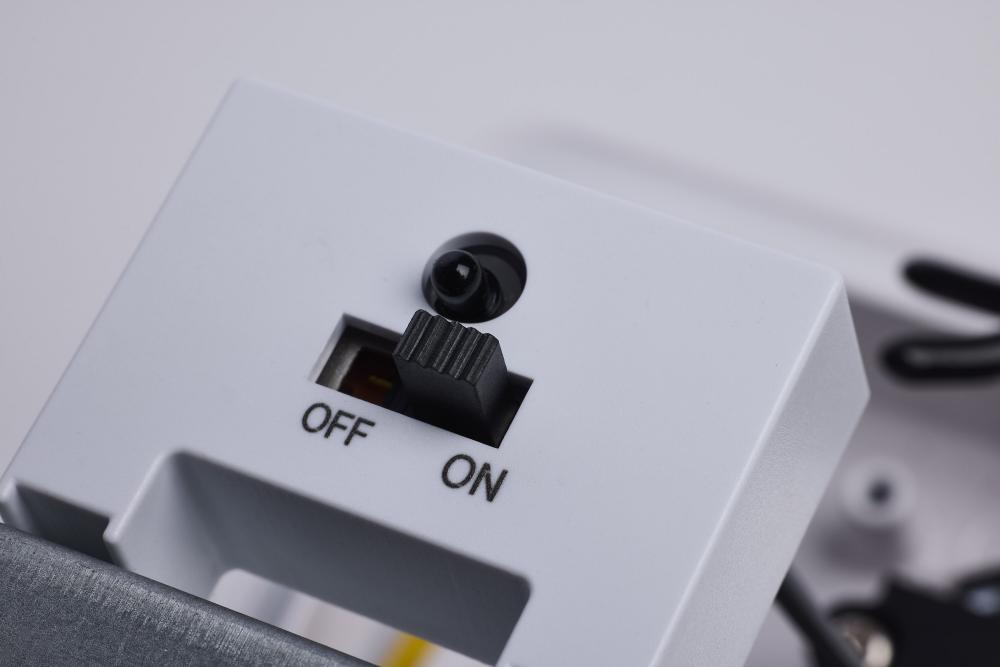

Photocell:
Has Photocell
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
11
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:

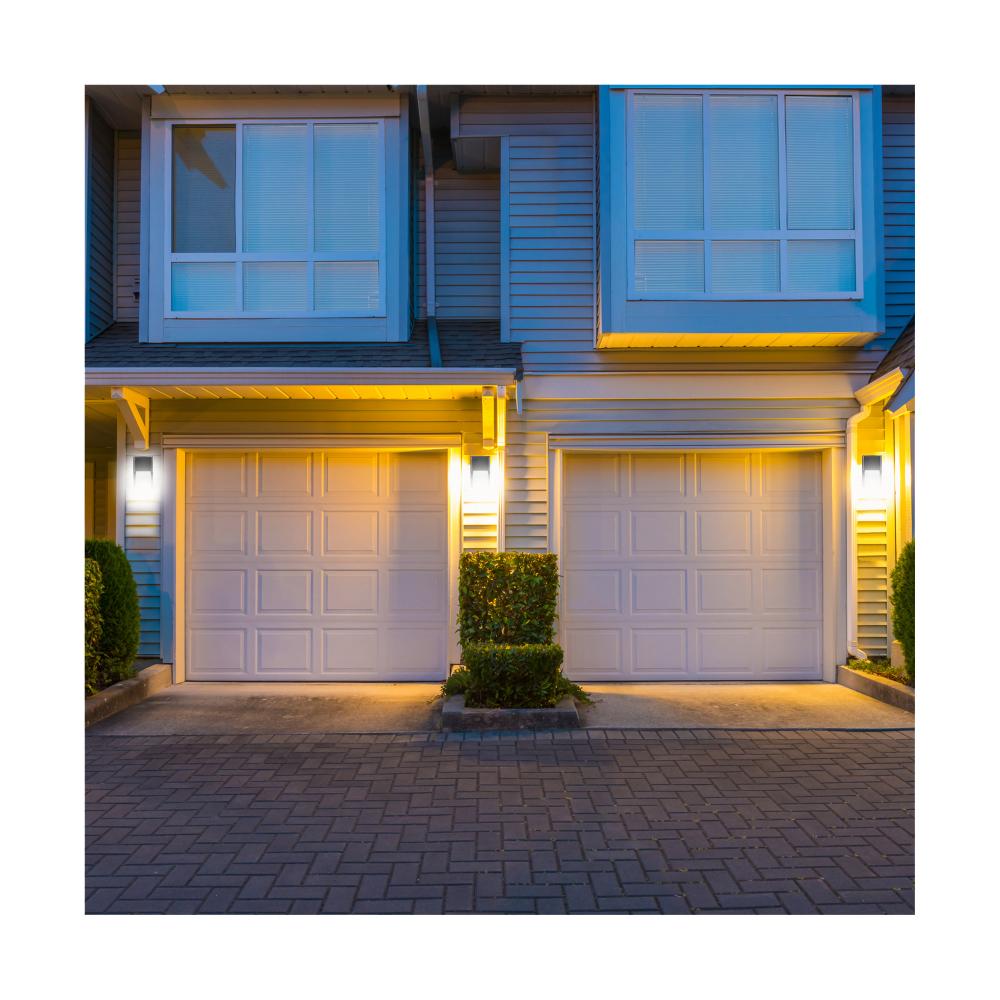

Elevate the lighting of your entryways with SATCO NUVO's premium LED wall packs that combine durability, versatility, and style. Featuring an integrated by passable photocell, these fixtures are crafted with robust die-cast aluminum construction and a
