Item Sales Info
Part Number: GMXQT-I-120 / Vendor ID Number: 4249 / Custom:
TIME SW,CLK FACE,QTZ,24HR,INDR

TIME SW,CLK FACE,QTZ,24HR,INDR

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 4.25"
Width: 7.30"
Product Overview

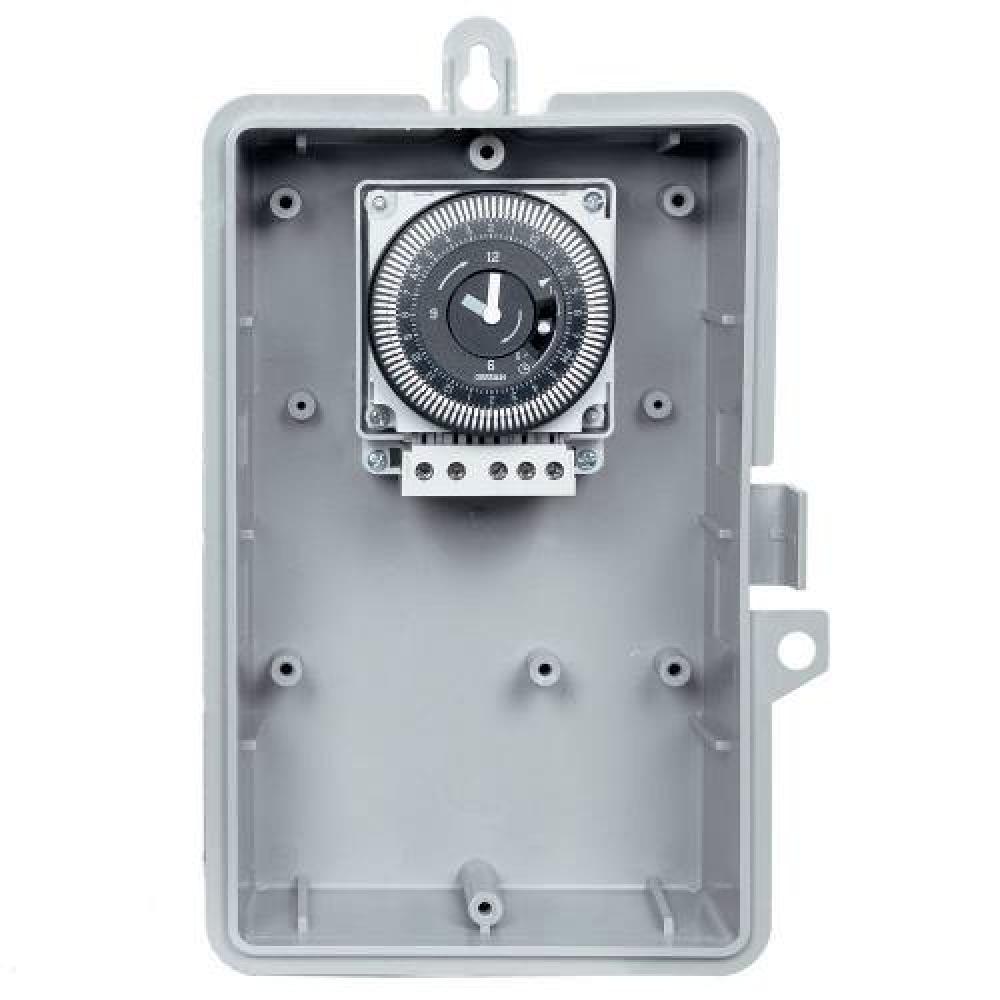

The 24-Hour, 120V 50/60Hz, NEMA 1 Indoor Plastic Enclosure, Battery Backup, 21A SPDT Time Switch is a universal, electromechanical time control. It is a light-duty commercial time switch ideal for 24 or 120 VAC single phase applications, such as lighting control, heating, air-conditioning, pumps, motors, fans, agricultural facilities and general electrical circuits. The unit is mounted in a Type 1 indoor enclosure.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
File
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Application:
Commercial, Indoor, Lighting, HVACR, Pumps, Motors, Fans, Agricultural, General Electrical Circuit
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 250 VAC (Resistive)
Country Of Origin:
DE
Enclosure:
NEMA 1
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
11.8000 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-4 to +131 DEG F, -20 to +55 DEG C
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Spec Sheet:
Spec Link
Special Features:
Features: Manual Override (ON/Auto/OFF), Captive Trippers, Easy-to-Set True Clock Face, Finger-Safe Terminals, Quartz Drive with 7 Days Battery Backup
Standard:
cULus Listed #E10694, HVACR, cCSAus Certified
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Electromechanical Time Control
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1350
Weight:
1.790 L
