Item Sales Info
Part Number: GM40AV-M / Vendor ID Number: 4249 / Custom:
DPDT TIME SWITCH MECH

DPDT TIME SWITCH MECH

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.50"
Width: 4.75"
Product Overview

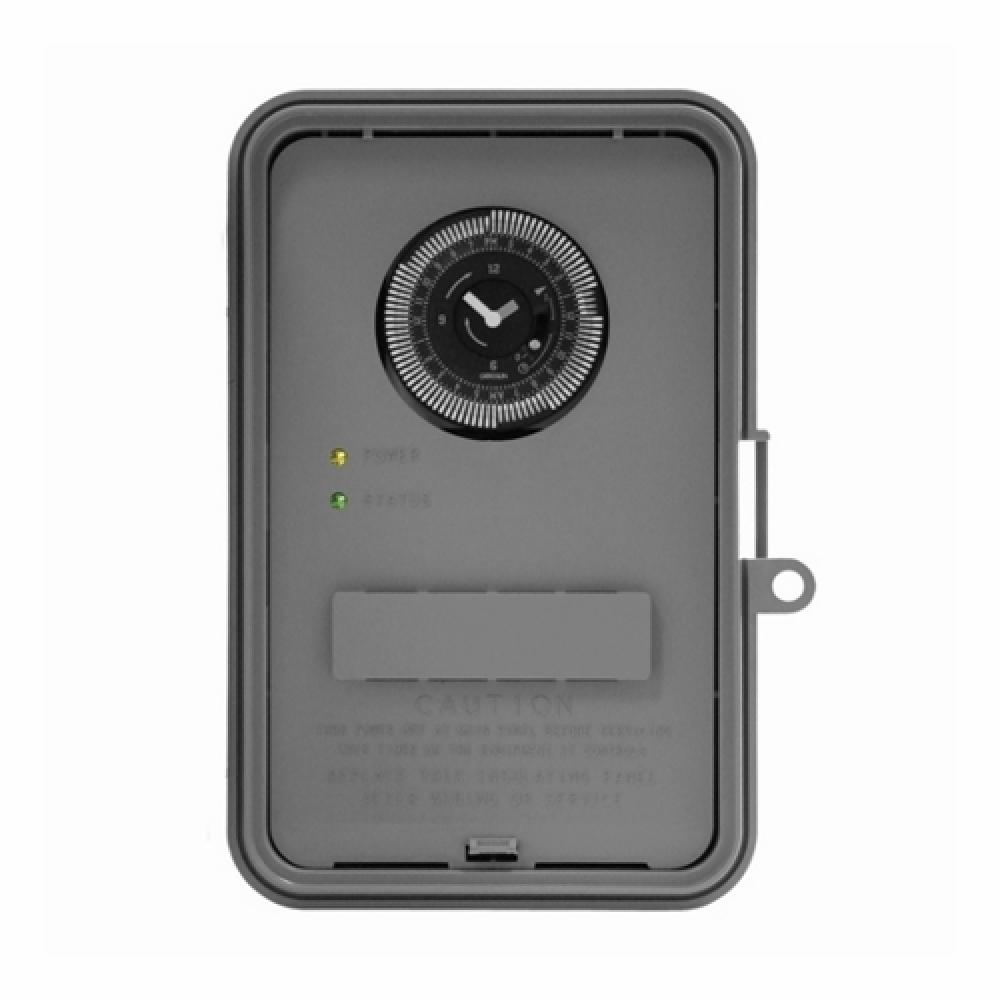

The 24-Hour Electromechanical, 40A, SPDT/DPDT, Auto-Voltage, Mech only (Fits T101 enclosure) 40 Amp Auto-Voltage Time Switch is a universal electromechanical control, which automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The time switch controls high amperage loads for lighting, HVACR, pumps, motors, fan controls, access controls, agricultural facilities, and general purpose electrical circuits. The mechanism is mounted in a compact Type 3R outdoor enclosure and features a DPDT Switching Configuration standard.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x DPDT
Amperage Rating:
40
Application:
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural
Brand Name:
Intermatic
Connection:
Screw Box Lug
Contact Configuration:
2 NO/2 NC
Contact Rating:
40 AMP @ 120 - 277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120 - 277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC)
Country Of Origin:
DE
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
7.5000 IN
Mounting:
Wall Mount
Number Of Poles:
2
Operating Cycles:
50000
Operating Temperature:
-40 to +131 DEG F, -40 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM
Spec Sheet:
Spec Link
Special Features:
Features: Power and Status LED Indicators, 96 Captive Trippers Enable 48 ON/OFF Operations each Day, Automatically Adjusts Voltages between 120 and 277 VAC, Manual 3-Way OFF/AUTO/ON Override Switch, Easy-to-Set True Clockface, Mechanism Simply Snaps into m
Standard:
cULus Listed #E10694, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Electromechanical Auto-Voltage
UNSPSC:
39122208
Voltage Rating:
120 - 208/240/277
Weight:
0.770 L
