Item Sales Info
Part Number: FM1D20E-240 / Vendor ID Number: 4249 / Custom:
DGTL TMR,20 PRGM,240V,FLSH MNT

DGTL TMR,20 PRGM,240V,FLSH MNT

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.25"
Width: 3.30"
Product Overview

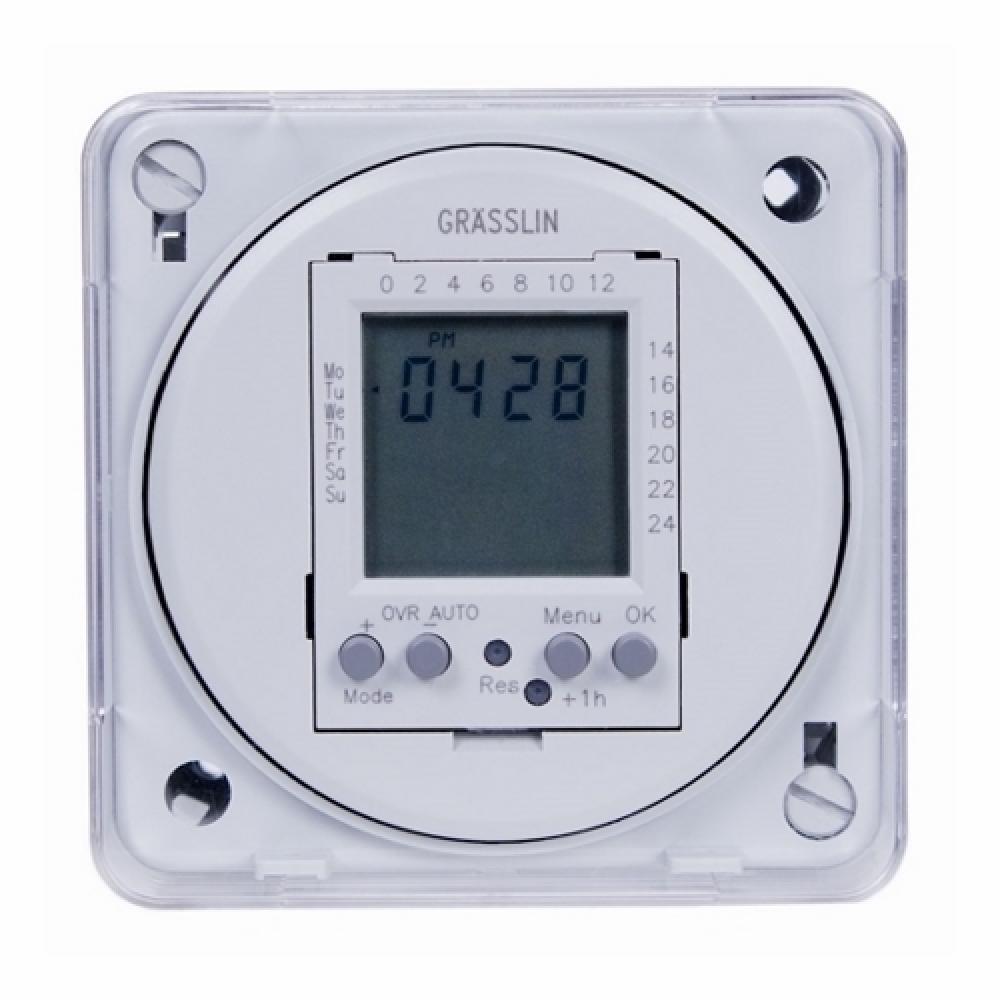

The Electronic 24-Hour/7-Day Timer Module, Flush Mount, 16A, 208/240V, 50/60Hz This One-Circuit Electronic Time Switches are ompact 24-Hour/7-Day modules with heavy-duty relay contacts for switching low or line voltage loads. The timers are suitable for time-of-day control of pumps, fans, heaters, HVAC control circuits, equipment
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
File
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPDT
Application:
Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Country Of Origin:
CN
Length:
4.8000 IN
Mounting:
Flush Mount
Number Of Poles:
1
Operating Temperature:
-13 to +131 DEG F, -25 to +55 DEG C
Order Minimum:
12.000 EA
Order Multiple:
12.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.83 HEIGHT X 2.83 WIDTH IN, 72 HEIGHT X 72 WIDTH MM
Spec Sheet:
Spec Link
Special Features:
Features: 20 Setpoint Programs, 3 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Status Indication, Battery Backup, Large LCD, Clear Dust-Cover, 1 Year Warranty
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
One Channel Electronic
UNSPSC:
39122208
Voltage Rating:
240
Wattage:
1000
Weight:
0.500 L
