Item Sales Info
Part Number: FM1D14-12U / Vendor ID Number: 4249 / Custom:
DGTL TMR,12V,14 SET PNT UN PCK

DGTL TMR,12V,14 SET PNT UN PCK

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.25"
Width: 3.25"
Product Overview

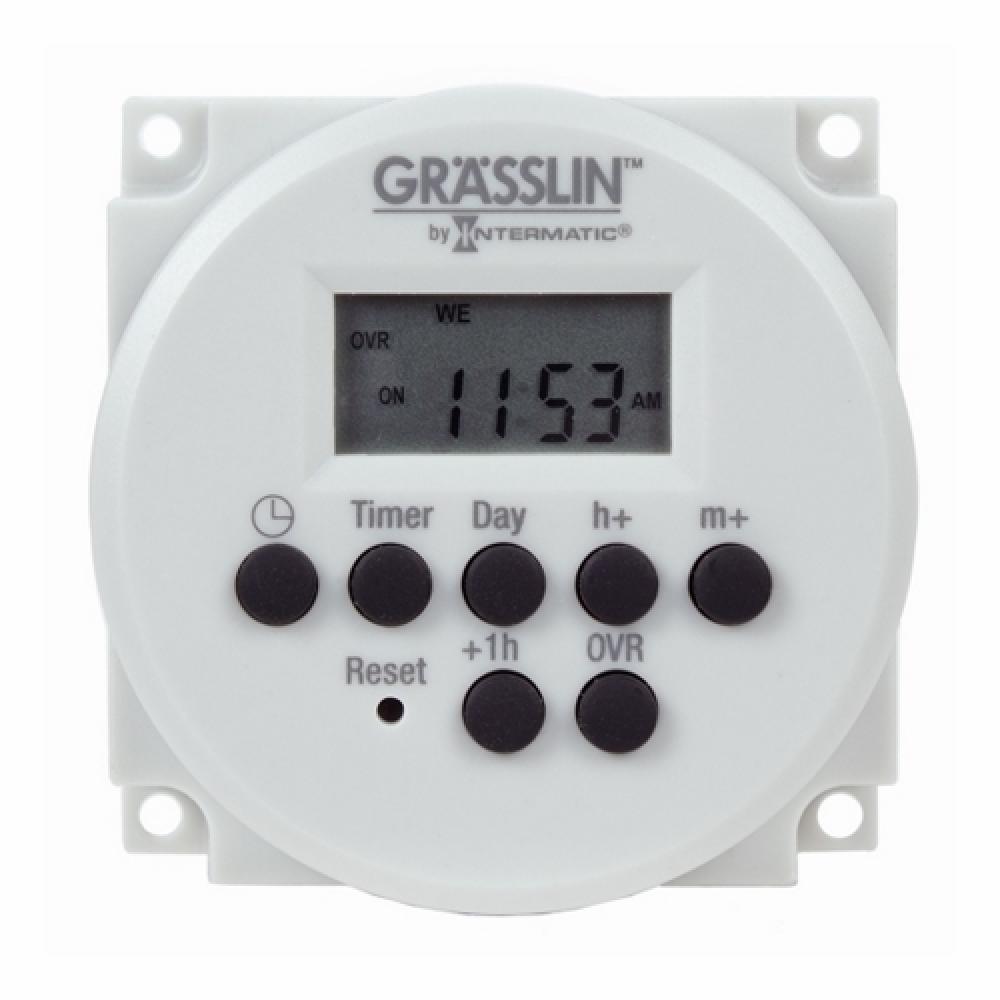

The 1-Channel, 2-Circuit, 24-Hour/7-Day, 12V Electronic Time Switch The FM1D14 Series One Circuit Electronic Time Switches are compact electronic 24-Hour/7-Day modules with heavy-duty relay contacts for switching low or line voltage loads. The timers are applicable for time-of-day control of pumps, fans, heaters, HVAC control circuits, lighting, machinery and many other types of commercial, industrial, and agricultural equipment.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
File
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPDT
Application:
Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
15 AMP @ 277 VAC (General Use NO), 8 AMP @ 277 VAC (Ballast NO), 4.9 AMP @ 120 VAC (Electronic Ballast NO), 15 AMP @ 277 VAC (General Use NC), 12 AMP @ 24 VDC (Resistive NC), 8 AMP @ 120 VAC (Ballast NC)
Country Of Origin:
CN
Length:
3.2500 IN
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-40 to +131 DEG F, -40 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.36 HEIGHT X 2.36 WIDTH X 1.26 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Spec Sheet:
Spec Link
Special Features:
Features: 14 Setpoint Programs, Easy-to-Program, Manual Override with Status Indication, Rechargeable Battery with Backup Protection up to 2500 Hours, LCD Display, 5 Preset Adjustable Block Programs, 1 Year Warranty
Standard:
cULus Recognized E10694, California TITLE 24 Compliant, HVACR
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24 HR/7 DAYS
Timing Range:
1 MIN - 24 HR/7 DAYS
Type:
One Circuit Electronic
UNSPSC:
39122208
Voltage Rating:
12
Wattage:
1000
Weight:
0.237 L
