Return

Item Sales Info

Part Number: ET8415CR / Vendor ID Number: 4249 / Custom:

Astronomic 7-Day 4-Circuit Electronic Control, 1

581

Pack Of: EA

Pack Of: 1 EA

Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 10.12"

Width: 3.50"

Length: 6.50"

Product Overview

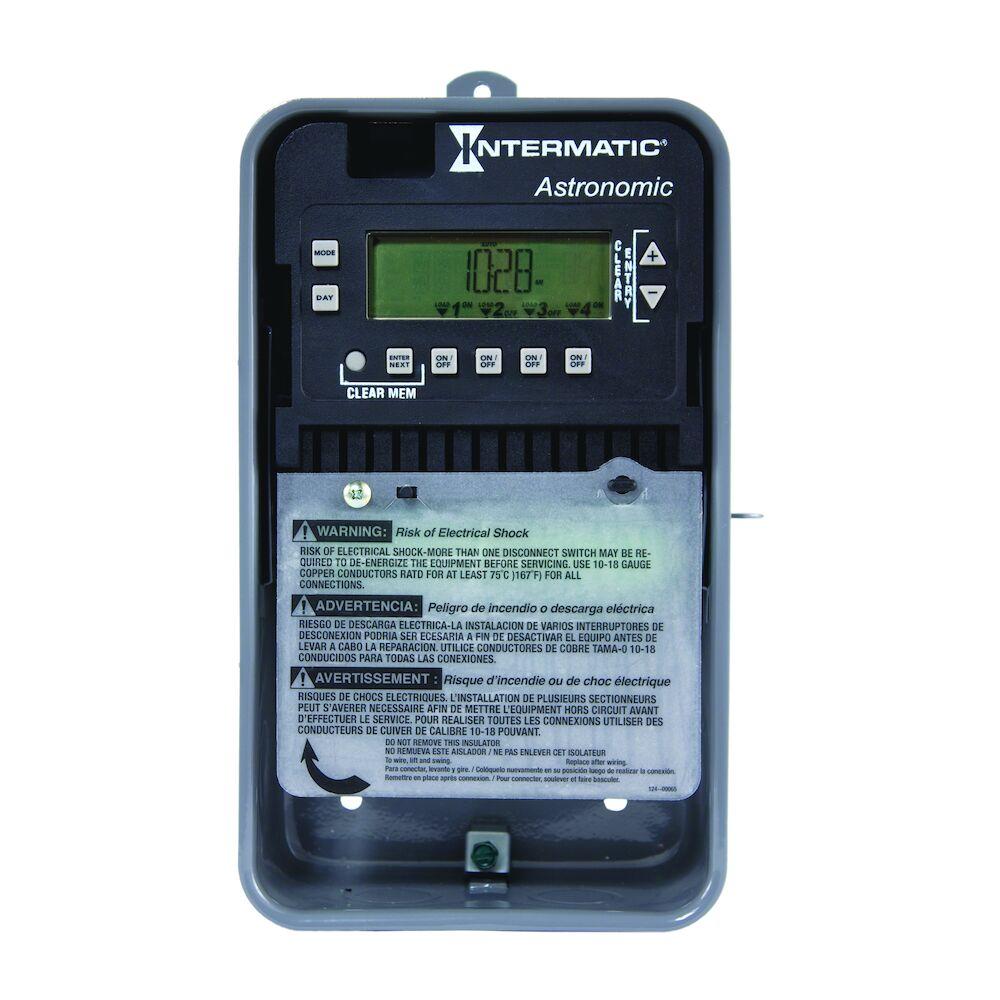

Astronomic 7-Day 4-Circuit Electronic Control, 120-277 VAC, 4-SPST, Outdoor Metal Enclosure

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Lighting Controls

Subcategory:

Lightswitches

Action:

4 x SPST

Amperage Rating:

Application:

Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting

Brand Name:

Intermatic

Brochure:

Manufacturer Brochure

Connection:

Wire Lead

Contact Configuration:

1 NO

Contact Rating:

30 AMP @ 120/240 VAC (Resistive), 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC (Ballast)

Country Of Origin:

Enclosure:

Type 3R Steel

Installation Link:

Installation Instructions

Mounting:

Wall Mount

Number Of Poles:

Operating Temperature:

-40 to +155 DEG F, -40 to +68 DEG C

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Spec Sheet:

Spec Link

Special Features:

Features: Automatically Adjusts Voltages between 120 and 277 VAC, 50/60Hz, 56 ON/OFF Events Per Week, 8 Astronomic Events, 100+ Hour Supercapacitor Maintains Time and Date After Power Loss, Temporary Override or Permanent Manual Override, Automatic Dayligh

Standard:

cCSAus Certified, California TITLE 24 Compliant, Title CA 20 Listed

Stock Type:

Shelf Stock

Timer Duration:

Timing Range:

1 MIN - 6 DAYS 23 HR 59 MIN

Type:

Astronomic Electronic

UNSPSC:

39122208

Voltage Rating:

120 - 277

Weight:

3.950 L
