Item Sales Info
Part Number: ET90415CR / Vendor ID Number: 4249 / Custom:

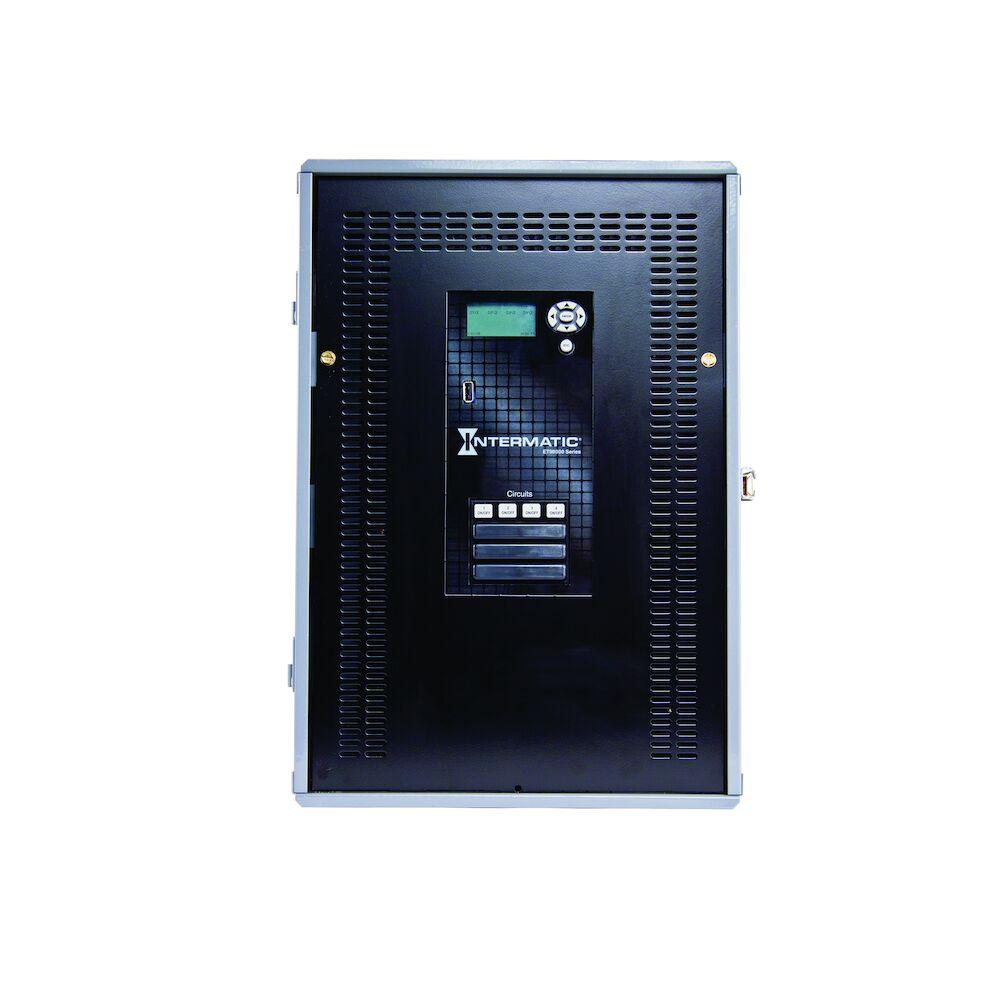

Astronomic 365-Day 4-Circuit Electronic Control,

Astronomic 365-Day 4-Circuit Electronic Control,

1,511
20
Pack Of: EA
Pack Of: 1 EA
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 9.00"
Width: 17.25"
Length: 22.63"
Product Overview
Astronomic 365-Day 4-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 4-SPDT/2-DPDT, Outdoor Metal Enclosure, Ethernet Included
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
4 x SPDT
Amperage Rating:
20
Application:
General Purpose, Lighting, HVACR
Brand Name:
Intermatic
Brochure:
Manufacturer Brochure
Connection:
Wire Lead
Contact Configuration:
1 NO/1 NC
Contact Rating:
30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General
Country Of Origin:
MX
Enclosure:
Type 3R Steel
Installation Link:
Installation Instructions
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +120 DEG F, -40 to +50 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM
Spec Sheet:
Spec Link
Special Features:
Features: Automatically Detects Input Voltages between 120 and 277 VAC, Up to 4000 Events Plus Holidays Scheduling, Ethernet Capable for Upgrading Firmware and Networking Time Switches and PC Tools, Easy-to-Follow on-Screen Menu, Password Protection, Firmw
Standard:
cULus Listed, cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
365
Timing Range:
1 S - 365 DAYS
Type:
Astronomic Electronic
UNSPSC:
39122208
Voltage Rating:
120 - 277
Weight:
20.200 L
