Part Number: FM1STUZ220/50 / Vendor ID Number: 4249 / Custom:

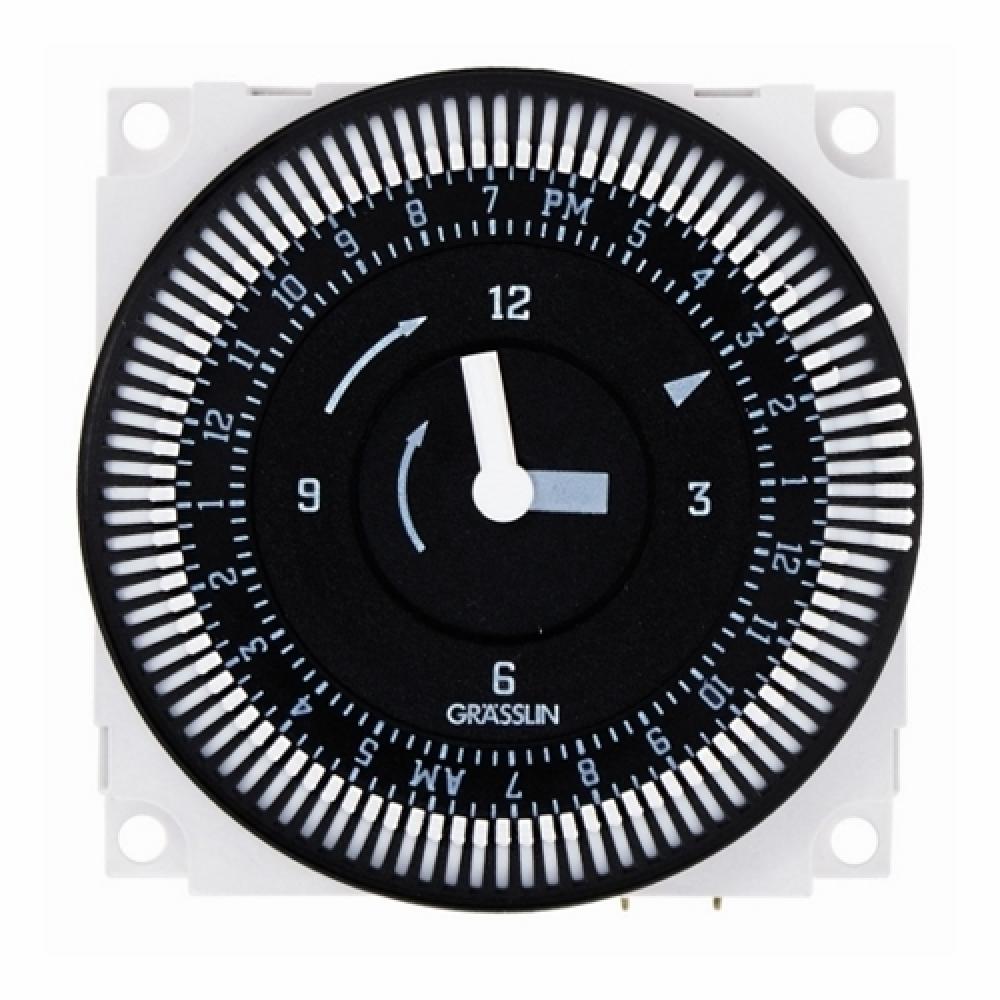

24HR  TIMER MOD 21 A 220 V 50 Hz

24HR TIMER MOD 21 A 220 V 50 Hz

Call For Price
Call for Availability
Qty
Product Specification
Dimensions
Height: 2.86"
Width: 1.50"
Product Overview
The 24HR TIMER MOD 21 A 220 V 50 Hz Electromechanical Timer Module is designed to be placed inside a machine control panel, circuit board, or other equipment. It offers up to 21 Amp switching designed for control of heating, ventilation, air conditioning, refrigeration, lighting, security, circulating pumps, spas, OEM applications, or any electrical load requiring 7-Day scheduling.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Application:
HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
Brand Name:
Intermatic
Connection:
1/4 IN Quick Connect
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 120 - 250 VAC
Country Of Origin:
DE
Length:
3.2000 IN
Mounting:
Panel Mount
Number Of Poles:
1
Operating Temperature:
-40 to +185 DEG F, -40 to +85 DEG C
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Spec Sheet:
Special Features:
Features: Noise Immune - Ideal for Robust Applications, True Clock Face Easy-to-Set, Compact Size
Standard:
CE Certified, HVACR, cULus Recognized #10694, cCSAus Certified LR3730
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Synchronous Electromechanical
UNSPSC:
39122208
Voltage Rating:
220
Wattage:
1350
Weight:
0.610 L
