Item Sales Info
Part Number: GMXST-O-24 / Vendor ID Number: 4249 / Custom:
24HR 24V 60Hz NEMA3R OD ENCL 21A SPDT

24HR 24V 60Hz NEMA3R OD ENCL 21A SPDT

Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 4.25"
Width: 7.30"
Product Overview

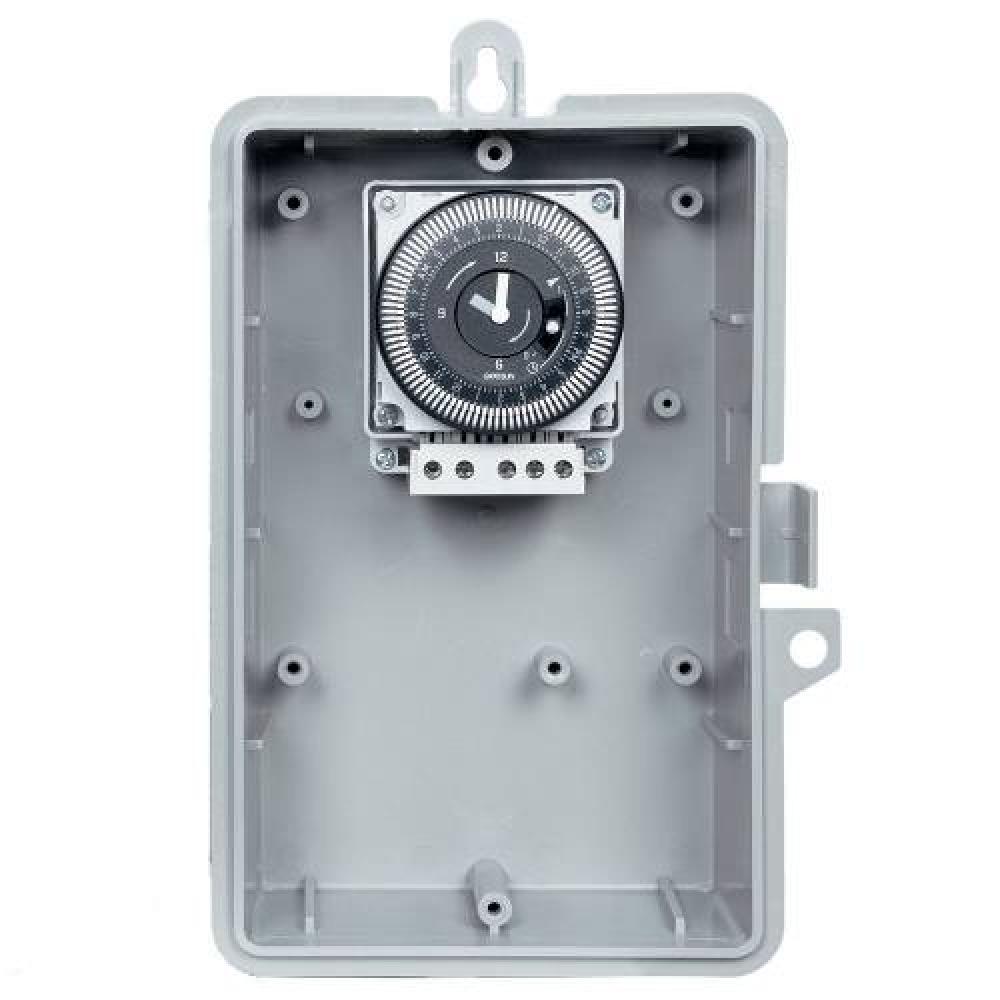

The 24HR 24V 60Hz NEMA3R OD ENCL 21A SPDT Time Switch is a universal, electromechanical time control. It is a light-duty commercial time switch ideal for 24 or 120 VAC single phase applications, such as lighting control, heating, air-conditioning, pumps, motors, fans, agricultural facilities and general electrical circuits. The unit is mounted in a Type 1 indoor enclosure.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
File
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
SPDT
Application:
Commercial, Outdoor, Lighting, HVACR, Pumps, Motors, Fans, Agricultural, General Electrical Circuit
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
21 AMP @ 250 VAC (Resistive)
Country Of Origin:
DE
Enclosure:
NEMA 3R
Environmental Conditions:
0 - 95 RH Non-Condensing
Length:
11.8000 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +185 DEG F, -40 to +85 DEG C
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Spec Sheet:
Spec Link
Special Features:
Features: Manual Override (ON/Auto/OFF), Captive Trippers, Easy-to-Set True Clock Face, Finger-Safe Terminals, Synchronous Drive with Battery Backup
Standard:
cULus Listed #E10694, HVACR, cCSAus Certified
Stock Type:
Shelf Stock
Sub Brand:
Grasslin
Timer Duration:
24
Timing Range:
15 MIN - 24 HR
Type:
Electromechanical Time Control
UNSPSC:
39122208
Voltage Rating:
24
Wattage:
1350
Weight:
1.810 L
