Item Sales Info

Part Number: T101R / Vendor ID Number: 4249 / Custom:

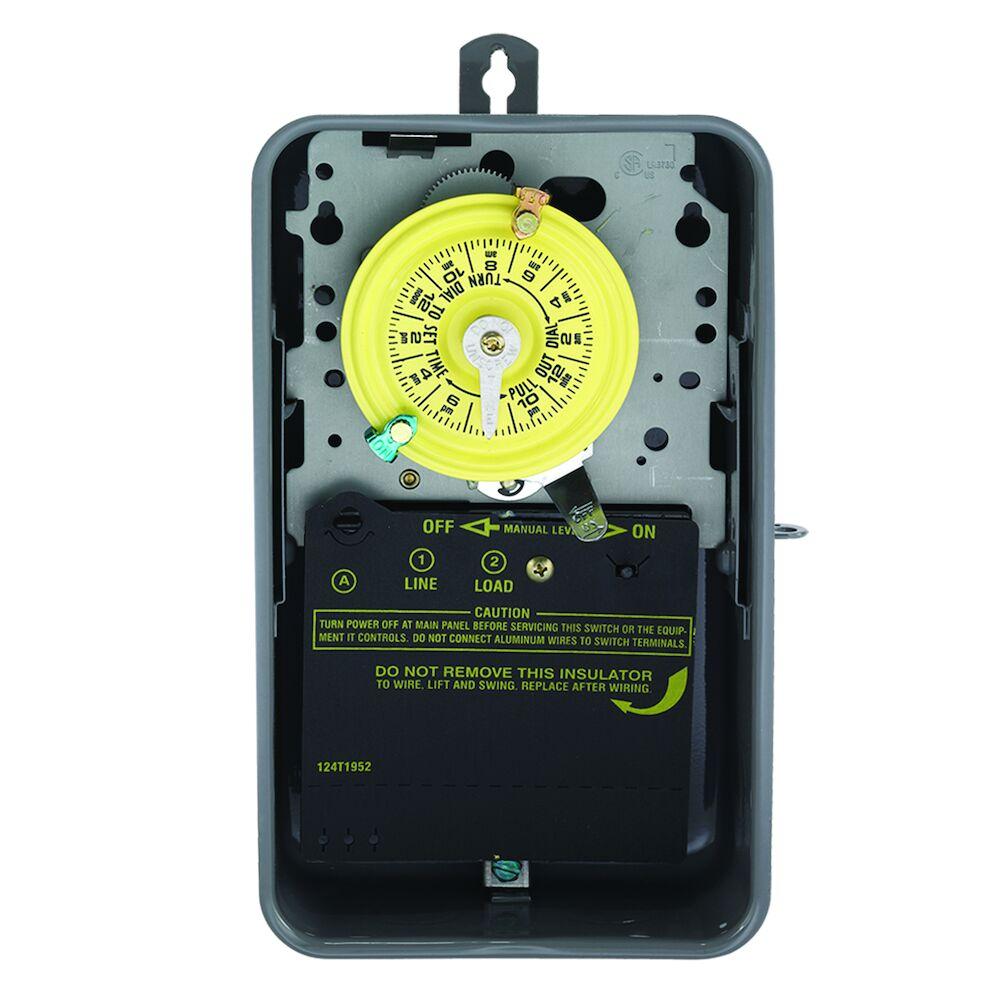

24-Hour Mechanical Time Switch, 120 VAC, 60Hz, S

149

Pack Of: EA

Pack Of: 1 EA

Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 10.00"

Width: 4.00"

Length: 6.50"

Product Overview

24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor/Outdoor Metal Enclosure, 1 Hour Interval

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Lighting Controls

Subcategory:

Lightswitches

Action:

SPST

Amperage Rating:

Application:

Commercial, Industrial, Residential, Outdoor, HVACR

Brand Name:

Intermatic

Connection:

Teeter Type

Contact Configuration:

1 NO

Contact Rating:

40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 (Tungsten)

Country Of Origin:

Enclosure:

NEMA 3R Steel

Installation Link:

Installation Instructions

Mounting:

Wall Mount

Number Of Poles:

Operating Temperature:

-40 to +130 DEG F, -40 to +54 DEG C

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Size:

5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM

Spec Sheet:

Spec Link

Special Features:

Features: Provides direct 24-Hour control of most loads, 1 to 12 ON/OFF operations each day, Minimum ON/OFF times of 1 hour, Manual override, 1 Year Warranty

Standard:

cCSAus Certified, HVACR

Stock Type:

Shelf Stock

Timer Duration:

Timing Range:

Type:

Electromechanical

UNSPSC:

39122208

Voltage Rating:

125

Wattage:

Weight:

3.550 L
