Part Number: G8145-00 / Vendor ID Number: 4249 / Custom:
120V/60Hz MECH DEF CTL TME/PRS INIT-TERM

120V/60Hz MECH DEF CTL TME/PRS INIT-TERM

Call For Price
Call for Availability
Qty
Product Specification
Dimensions
Height: 3.16"
Width: 5.28"
Product Overview

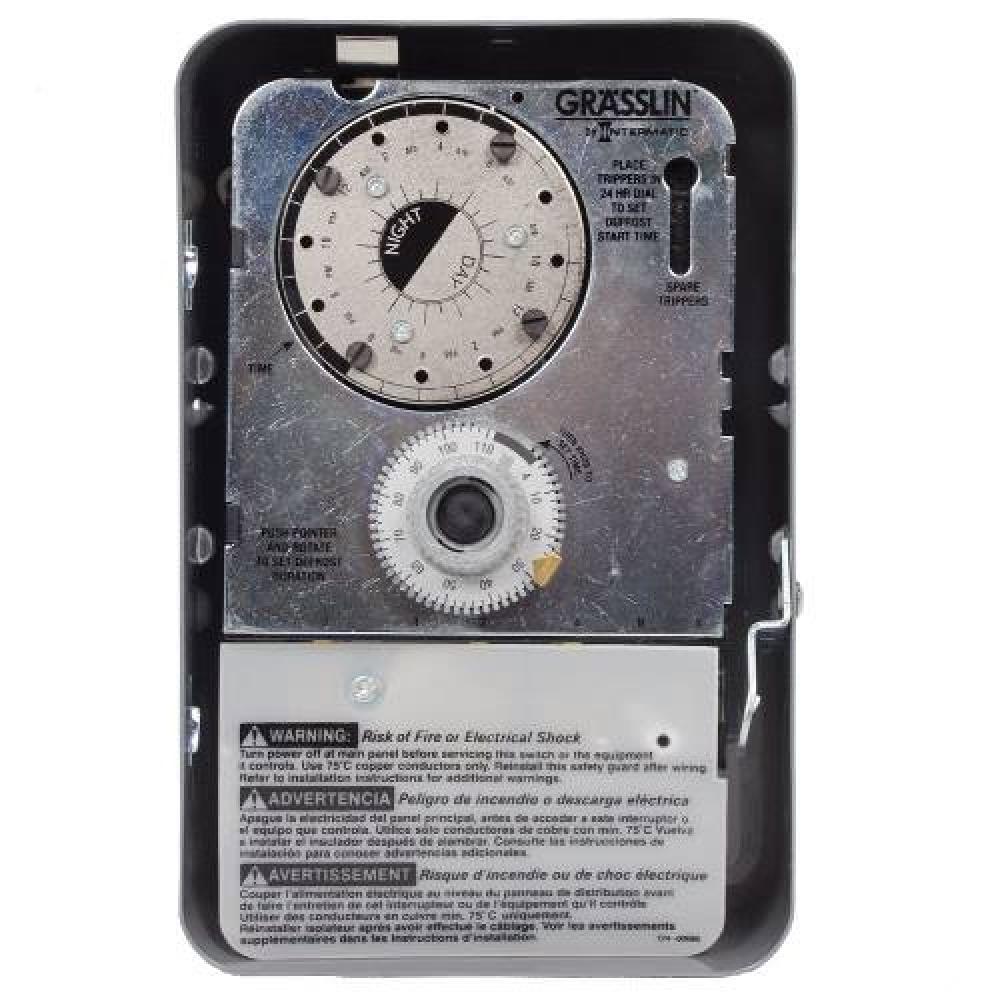

The 120V/60Hz MECH DEF CTL TME/PRS INIT-TERM The G8000 series defrost timers come complete with an industry-leading 2-year warranty. The G8000 features heavy-duty silver-plated 40 Amp welded contacts to provide consistent switching of demanding loads. Its encapsulated design prevents dust and dirt buildup to ensure reliable and lasting performance. The G8000 easily snaps into most enclosures, allowing a quick and easy installation.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Amperage Rating:
40
Application:
Indoor, Industrial
Brand Name:
Intermatic
Contact Configuration:
1 NO/1 NC
Contact Rating:
40 AMP @ 120 - 240 VAC
Country Of Origin:
MX
Enclosure:
Type 1 Steel
Length:
8.0300 IN
Mounting:
Bracket Mount
Operating Cycles:
30000
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Spec Sheet:
Special Features:
Features: Encapsulated Timer Module Design Prevents Dust and Dirt Buildup, Heavy-Duty Synchronous Motor for Accurate Time Keeping, Mounts in Existing Enclosures, No Tools Required, Heavy-Duty Welded And Silver-Plated 40 Amp Contacts Defrost Durations Progr
Standard:
UL873, cCSAus Certified 151753, cULus Listed SA33993
Stock Type:
Shelf Stock
Timer Duration:
110
Timing Range:
4 - 110
Type:
Mechanical Defrost
UNSPSC:
39122208
Voltage Rating:
120
Weight:
2.644 L
